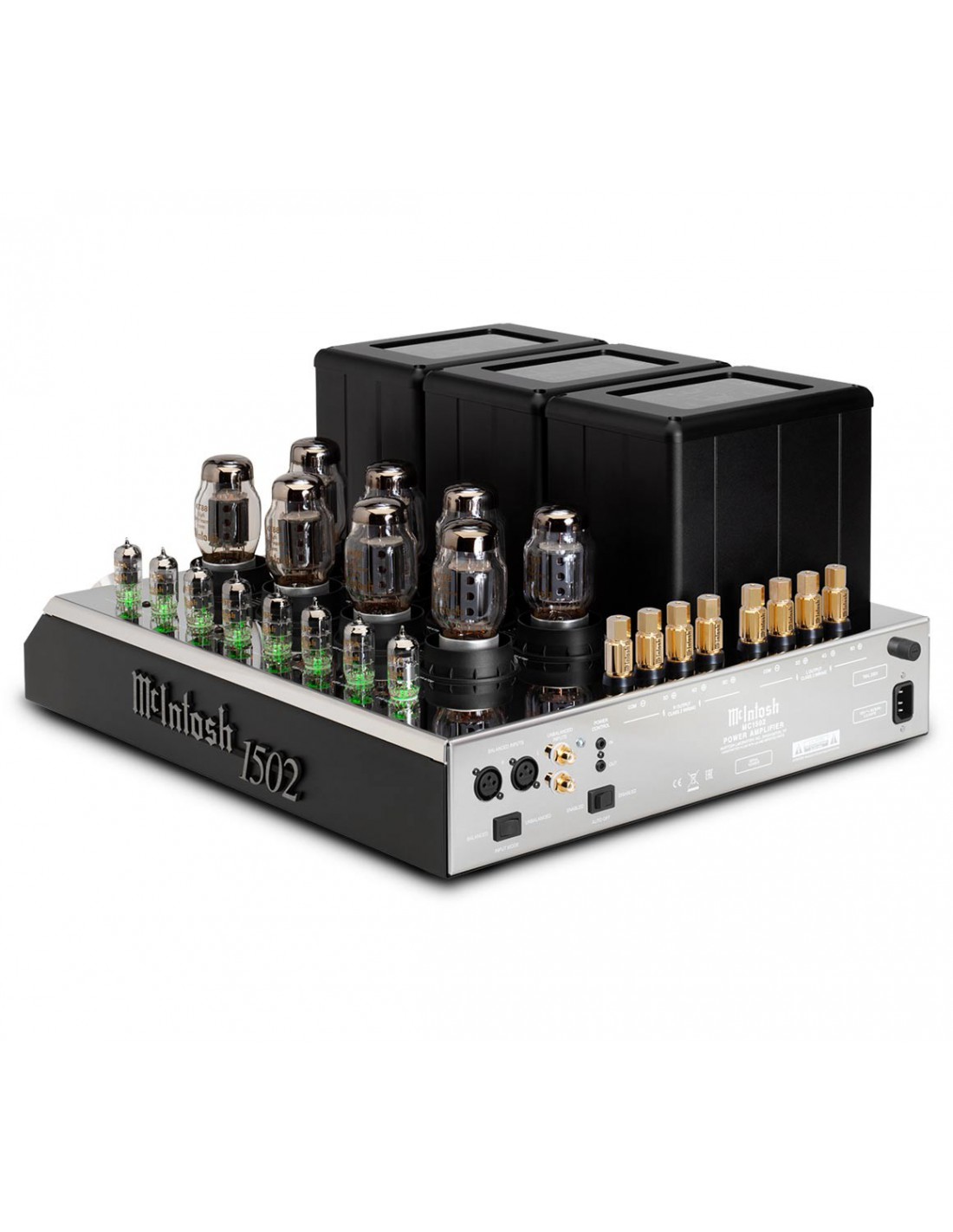

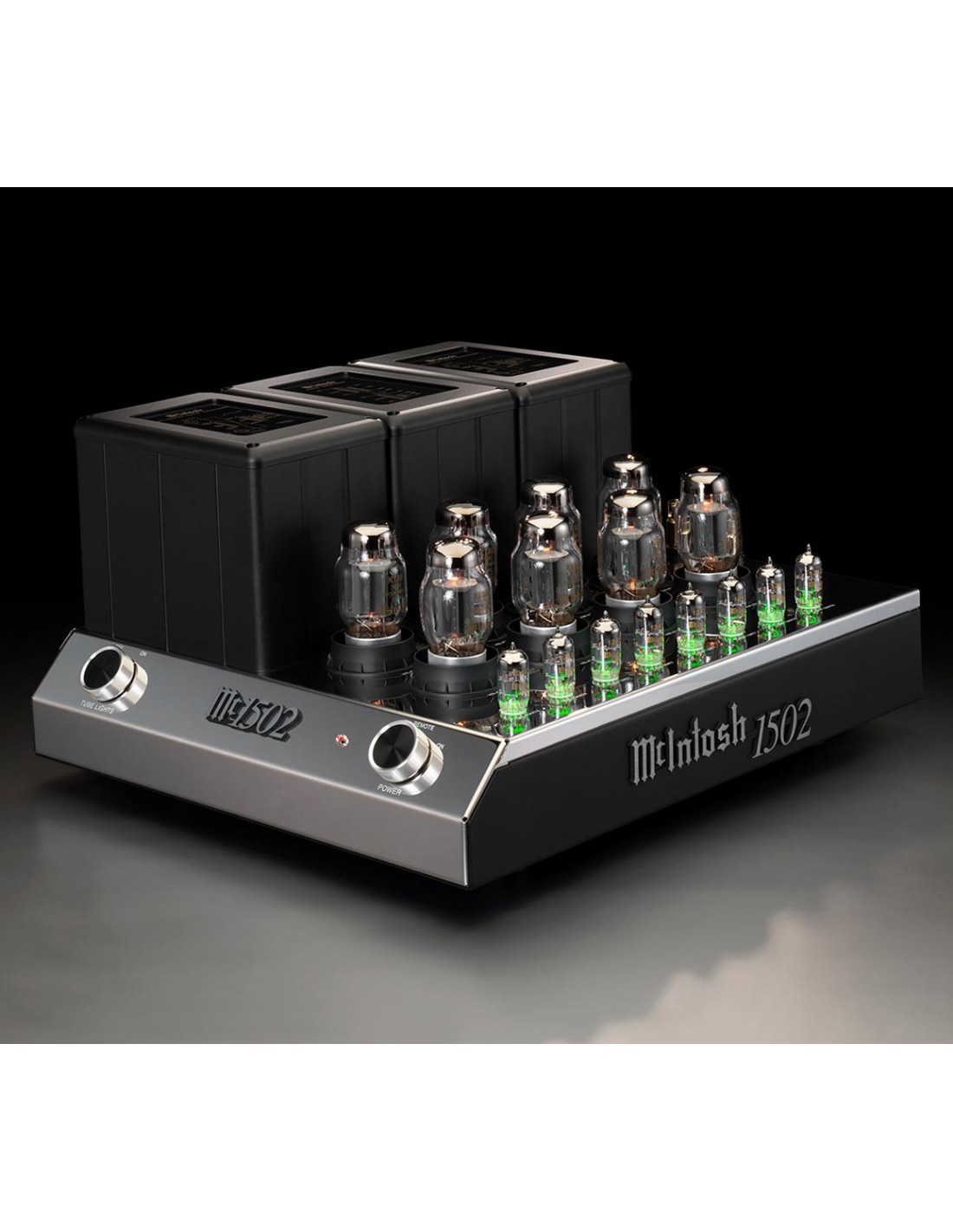

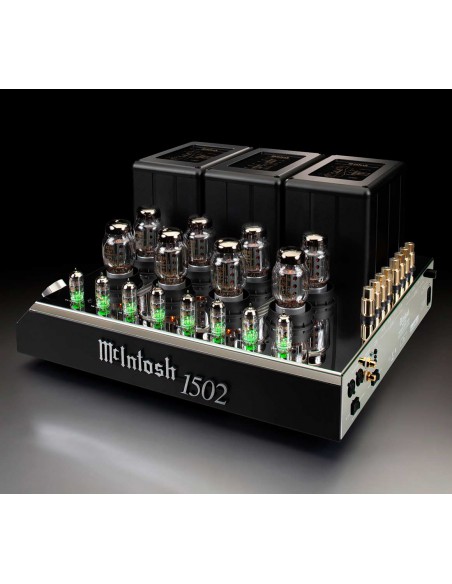

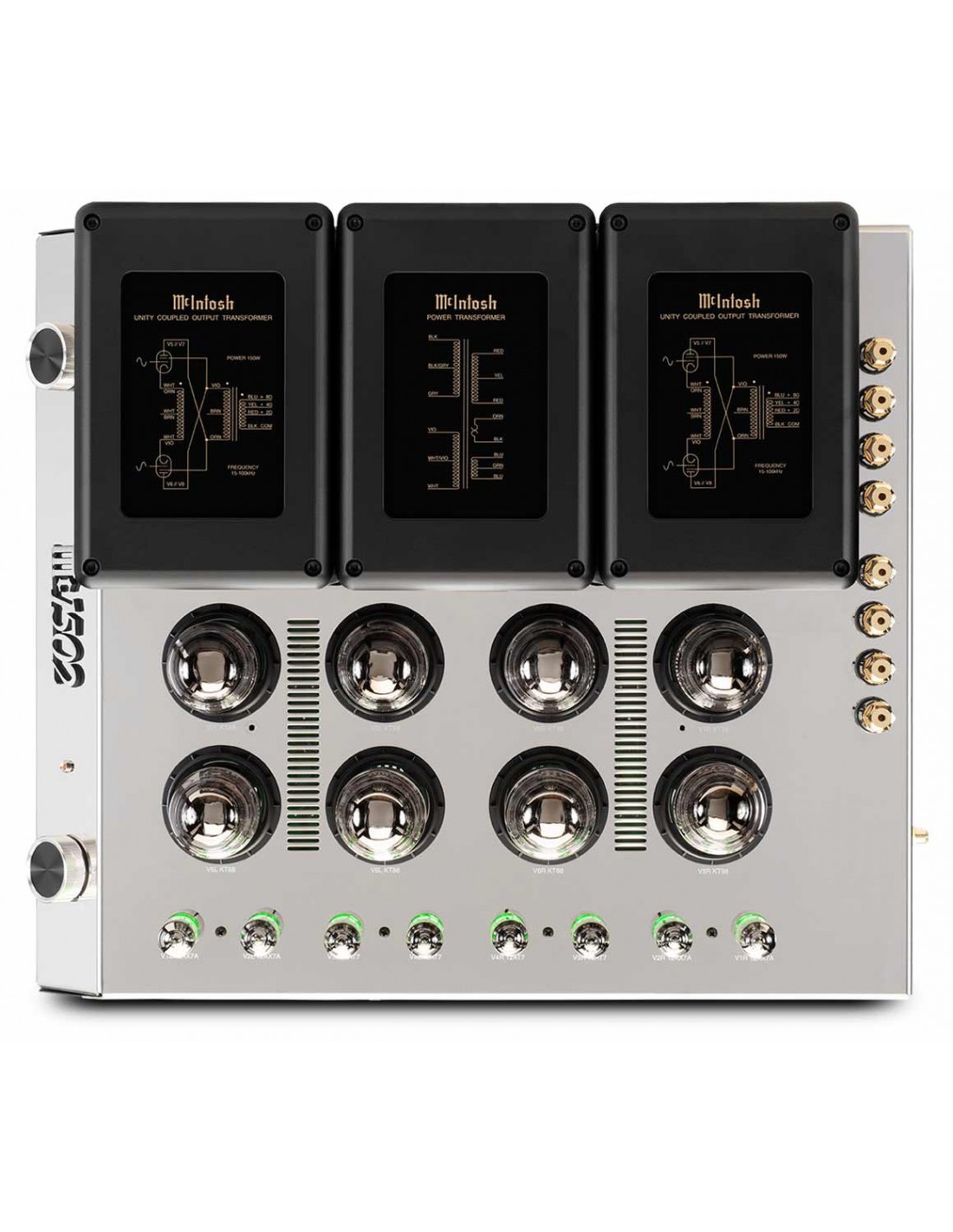

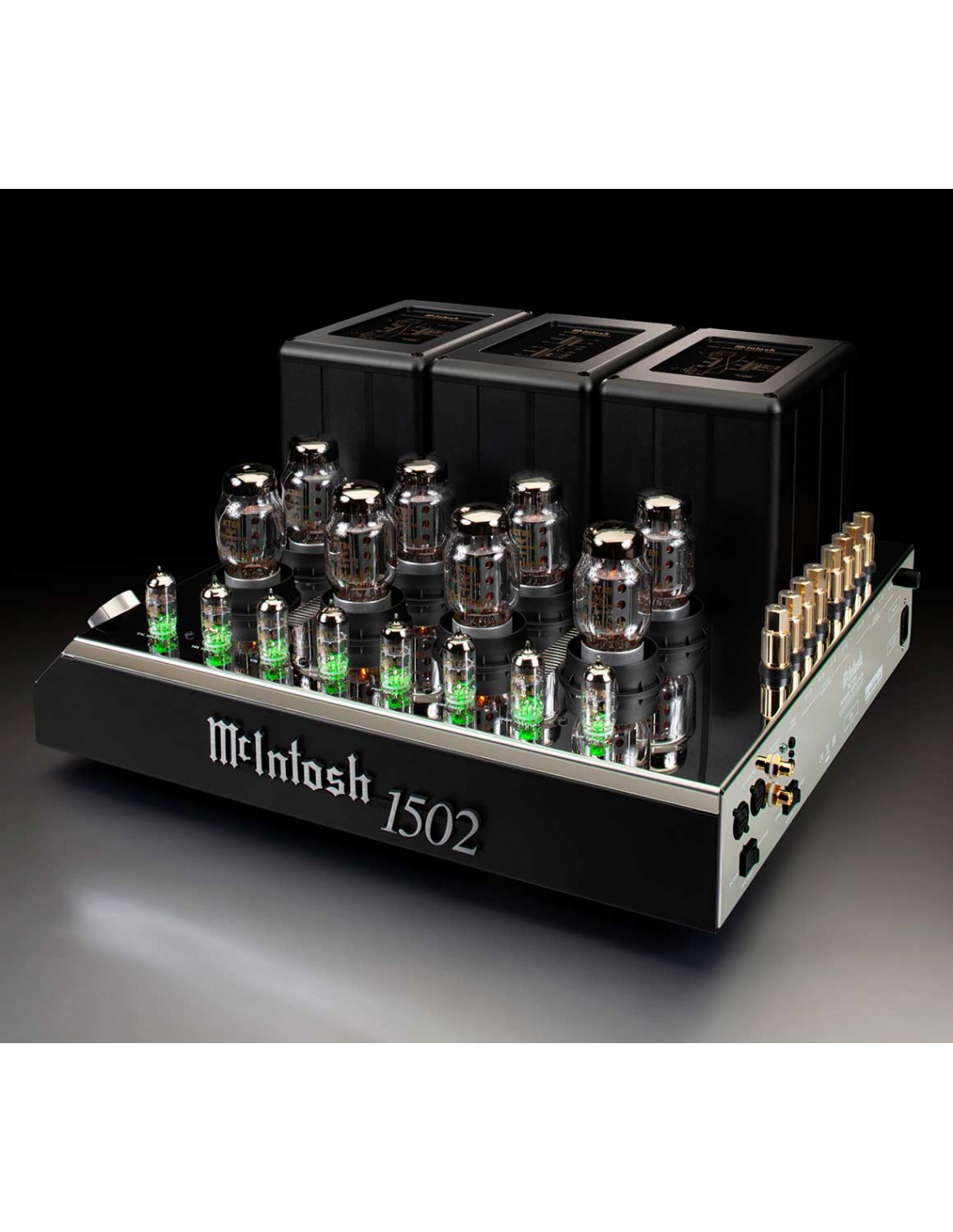

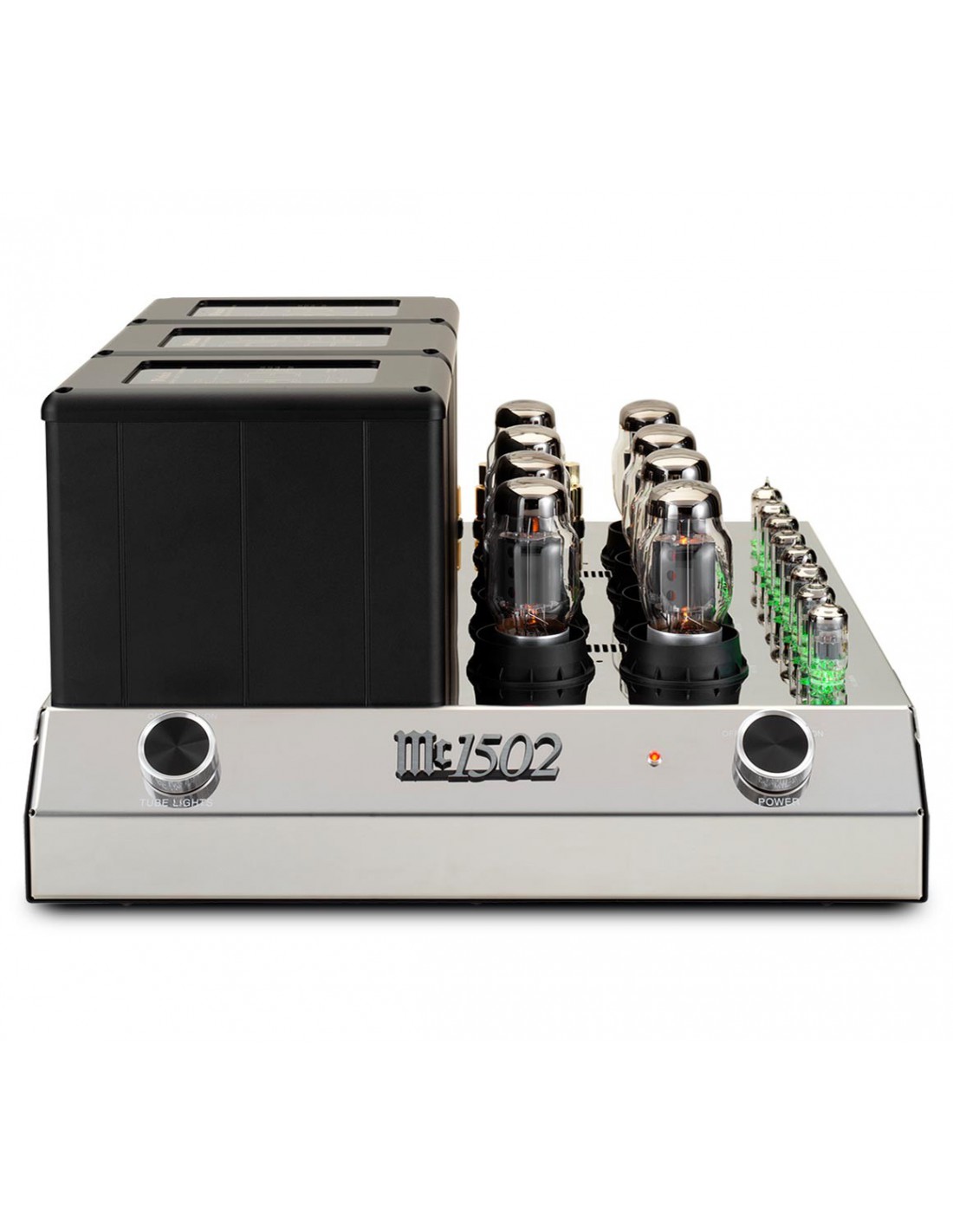

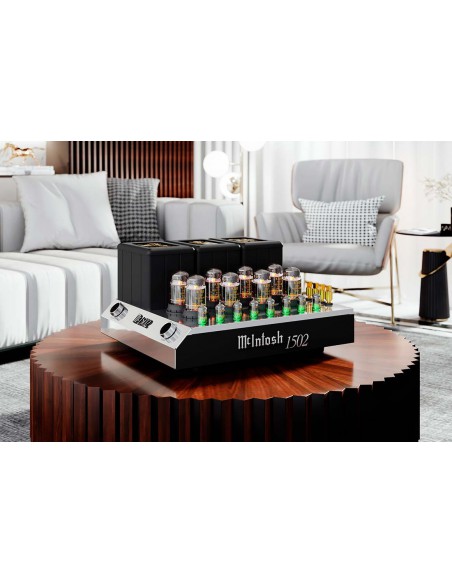

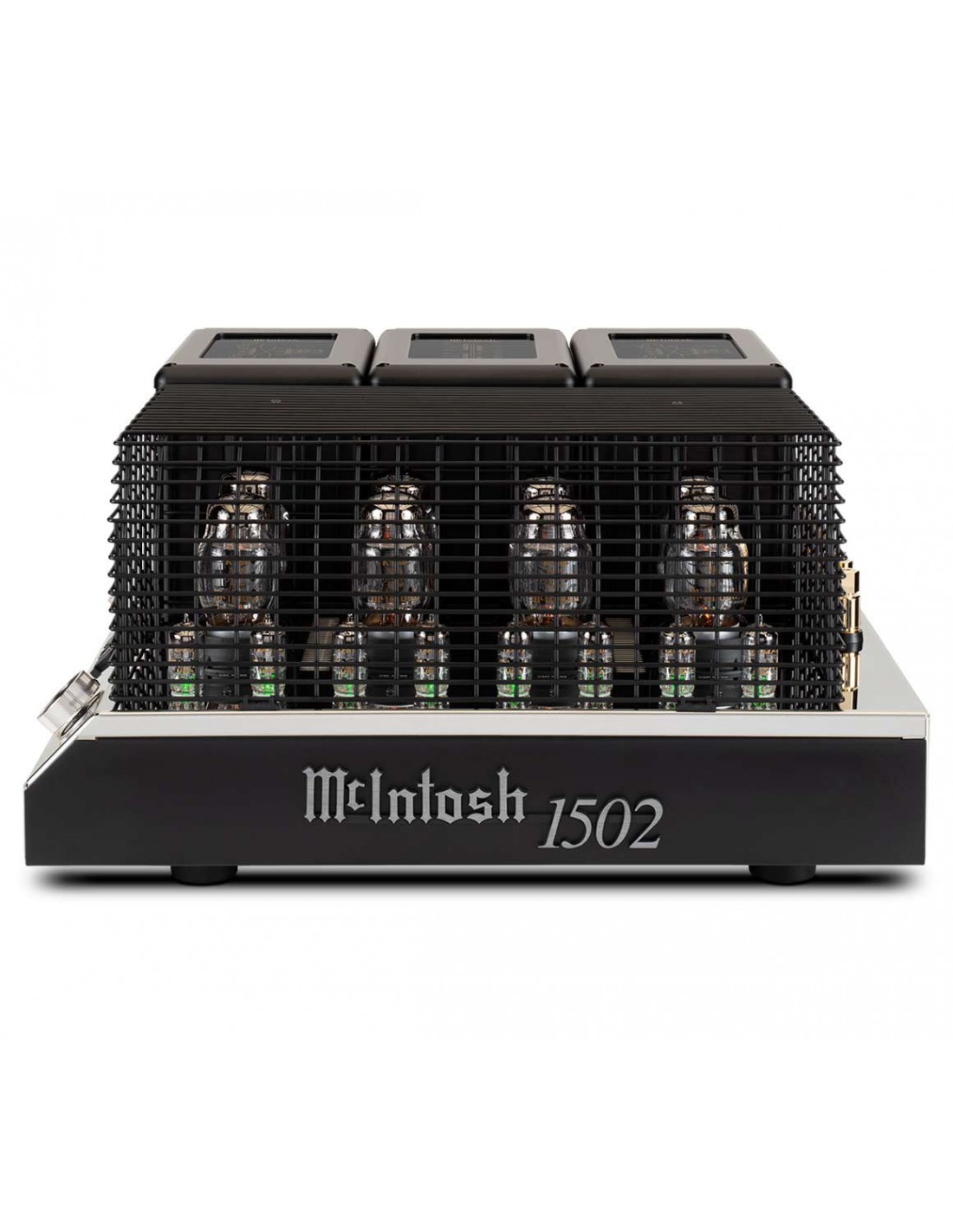

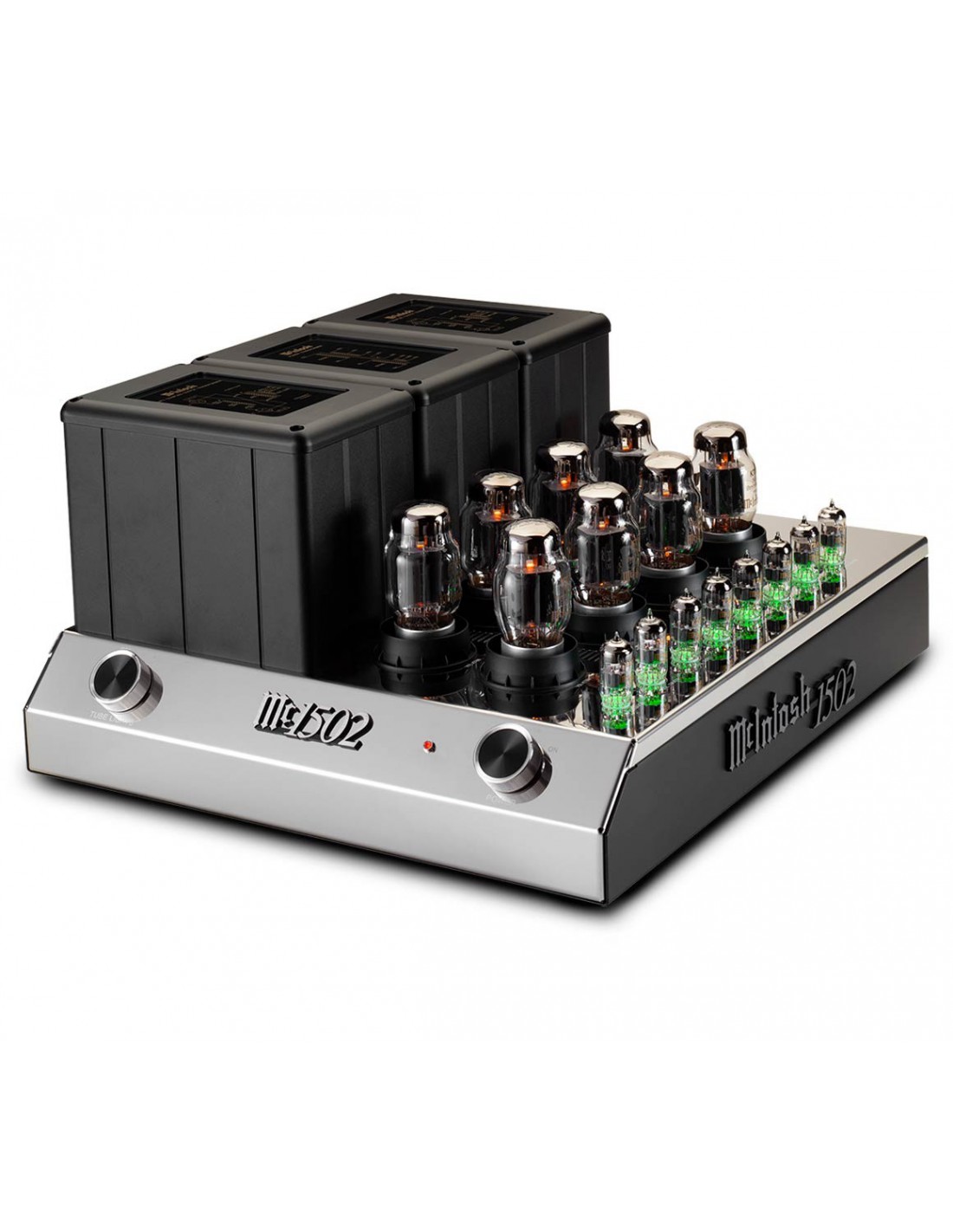

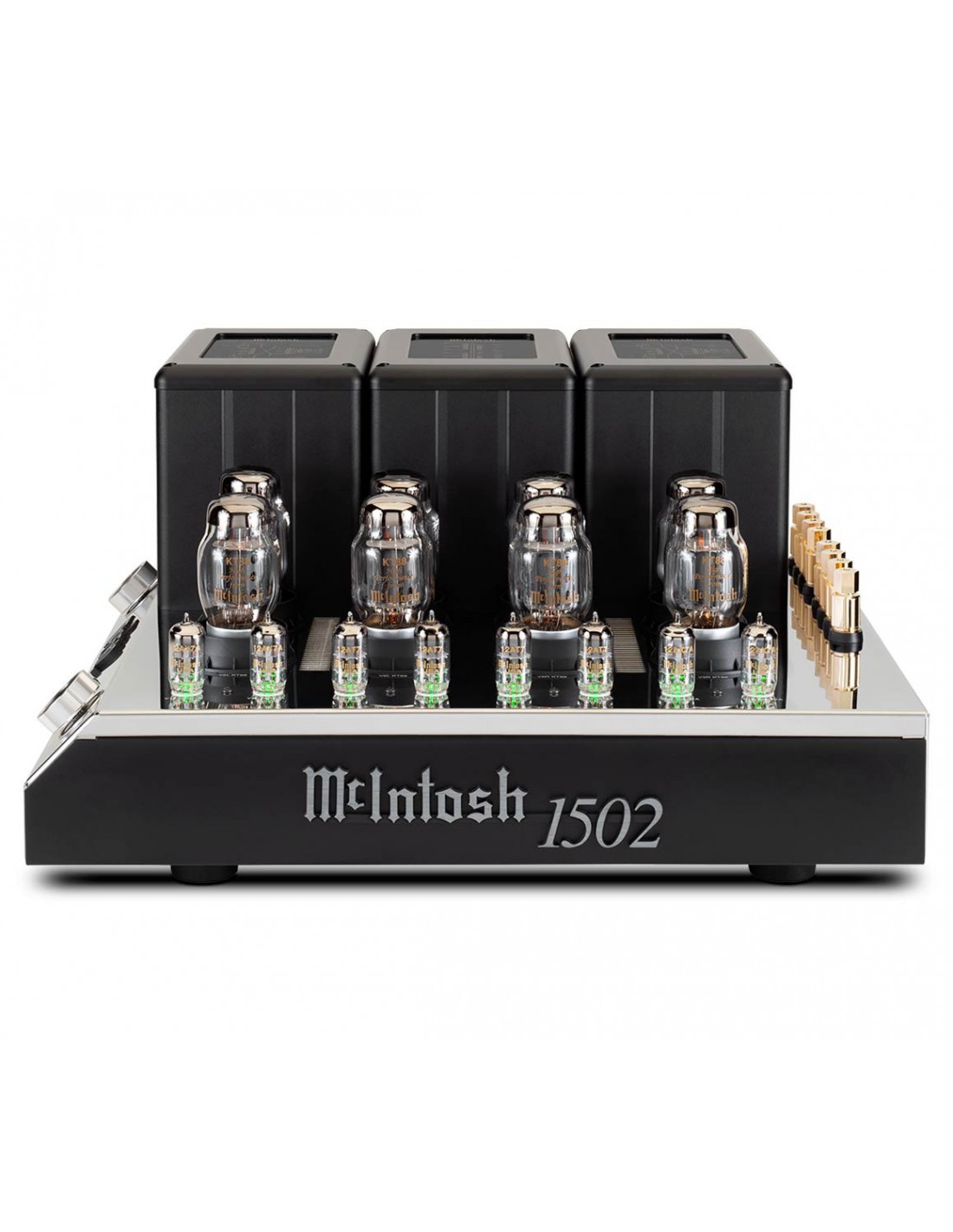

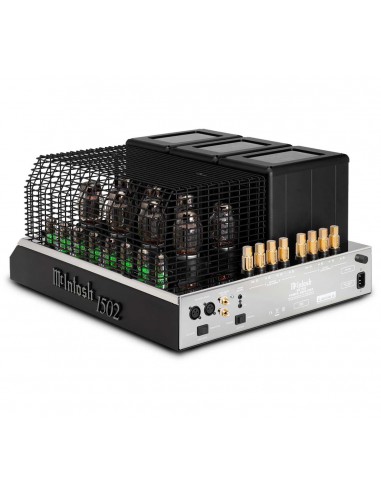

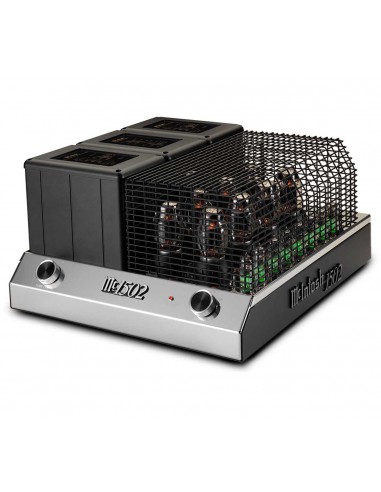

McIntosh MC1502

ELECTRONIC SPECIFICATIONS

• Number of Channels

  2

• Total Harmonic Distortion

  0.08%

• Frequency Response

  +0, -0.5dB from 20Hz to 20kHz
  +0, -3dB from 15Hz to 100kHz

• Maximum Volts Out (Balanced / Unbalanced)

  16V RMS / 8V RMS

• Sensitivity High Level (Balanced / Unbalanced)

  900mV / 450mV

• Sensitivity Phono (Moving Coil)

  0.45mV

• Sensitivity Phono (Moving Magnet)

  4.5mV

• Signal To Noise Ratio (High Level)

  100dB

• Signal To Noise Ratio (Moving Coil)

  75dB

• Signal To Noise Ratio (Moving Magnet)

  75dB

• Voltage Gain (High Level)

  15dB

• Voltage Gain (Moving Coil)

  60dB

• Voltage Gain (Moving Magnet)

  40dB

• Input Impedance (Balanced / Unbalanced)

  44K ohm, 22K ohm

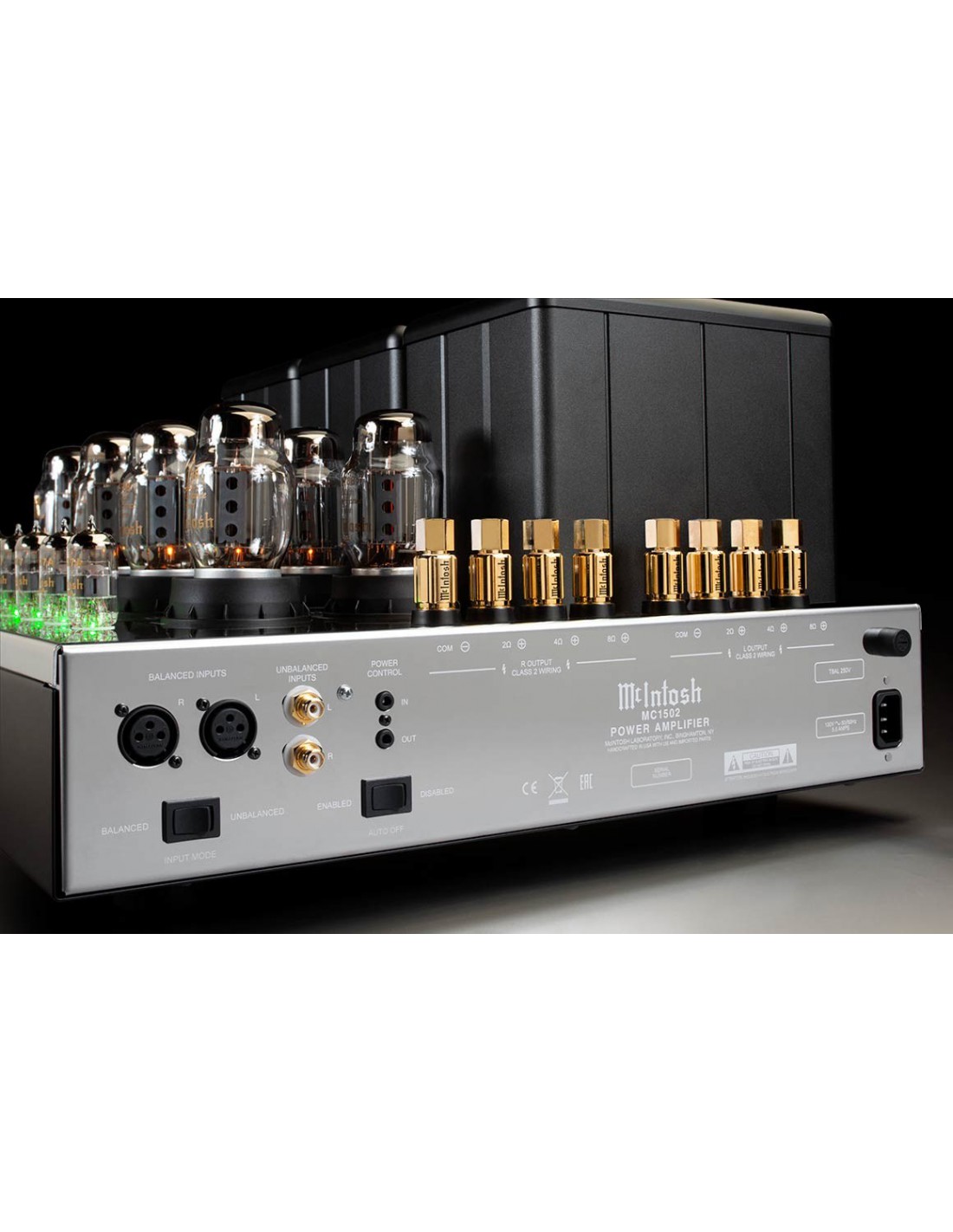

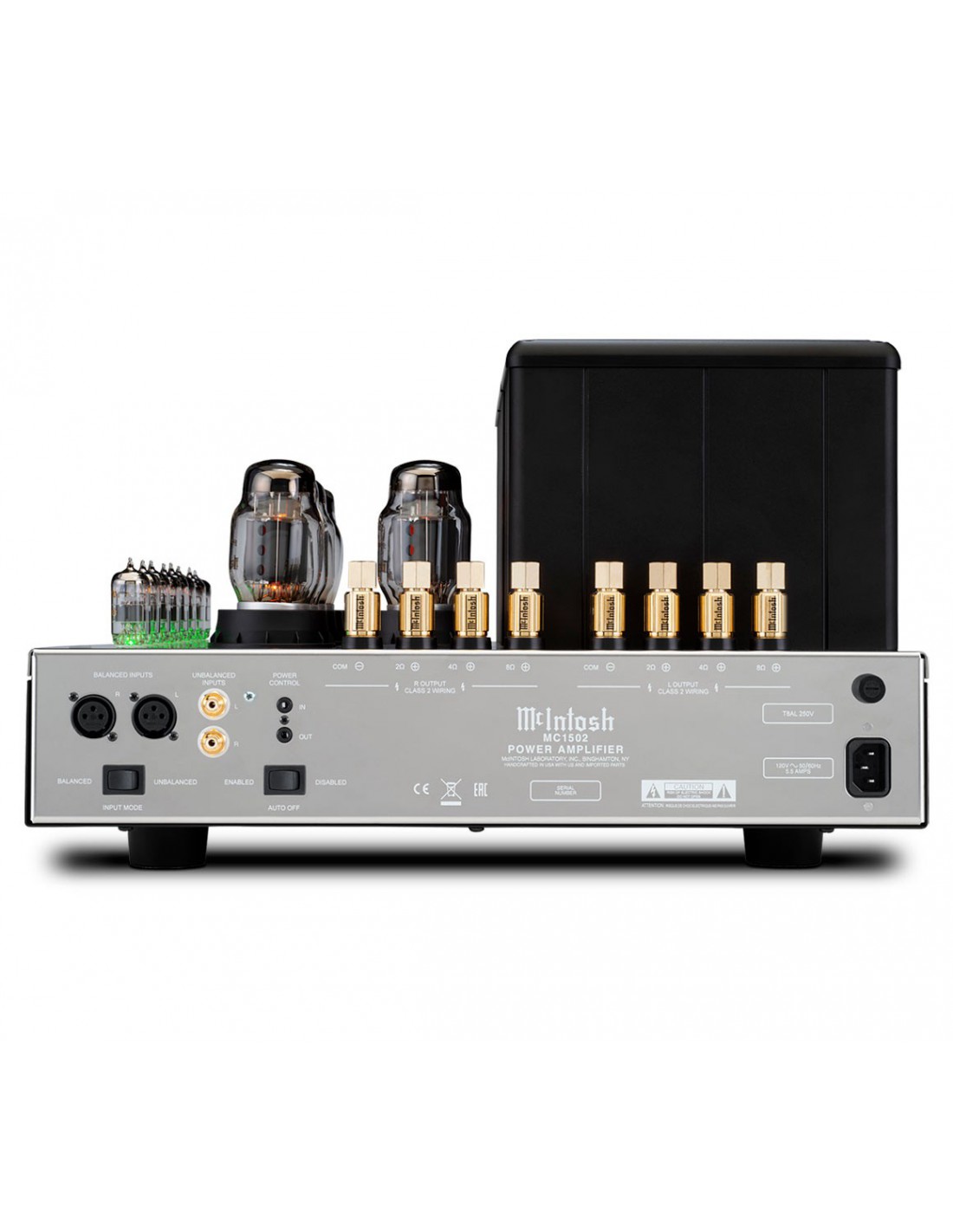

CONNECTIVITY

• Balanced Input

  2

• Unbalanced Input

  3

• Phono Input Moving Coil

  1 (adjustable)

• Phono Input Moving Magnet

  1 (adjustable)

• Upgradeable Digital Audio Module

  No

• Digital Coaxial Input

  0

• Digital Optical Input

  0

• Digital MCT (DIN) Input

  0

• Digital USB Input

  0

• HDMI (ARC) Input

  0

• Digital AES/EBU Input

  0

• Balanced Fixed Output

  0

• Balanced Variable Output

  2

• Unbalanced Fixed Output

  0

• Unbalanced Variable Output

  2

• Headphone Output

  1/4" High Drive with Headphone Crossfeed Director (HXD®)

• Input Level Match

  No

• Home Theater PassThru

  No

• Unbalanced Analog Connector Type

  Premium gold-plated solid brass

• Service Port

  0

CONTROL

• Tone Controls

  Bass and Treble

• Tone Bypass and Input Assign

  Tone Bypass: Yes
  Input Assign: No

• RS232 Control Input

  No

• Power Control Output

  2 Main, 2 Switched

• Rear Panel Data Port

  5

• Rear Panel IR Sensor Input

  Yes

GENERAL SPECIFICATIONS

• Multi-Chassis or Single

  Single, two layer

• Output Meters

  No

• Vacuum Tube or Solid State

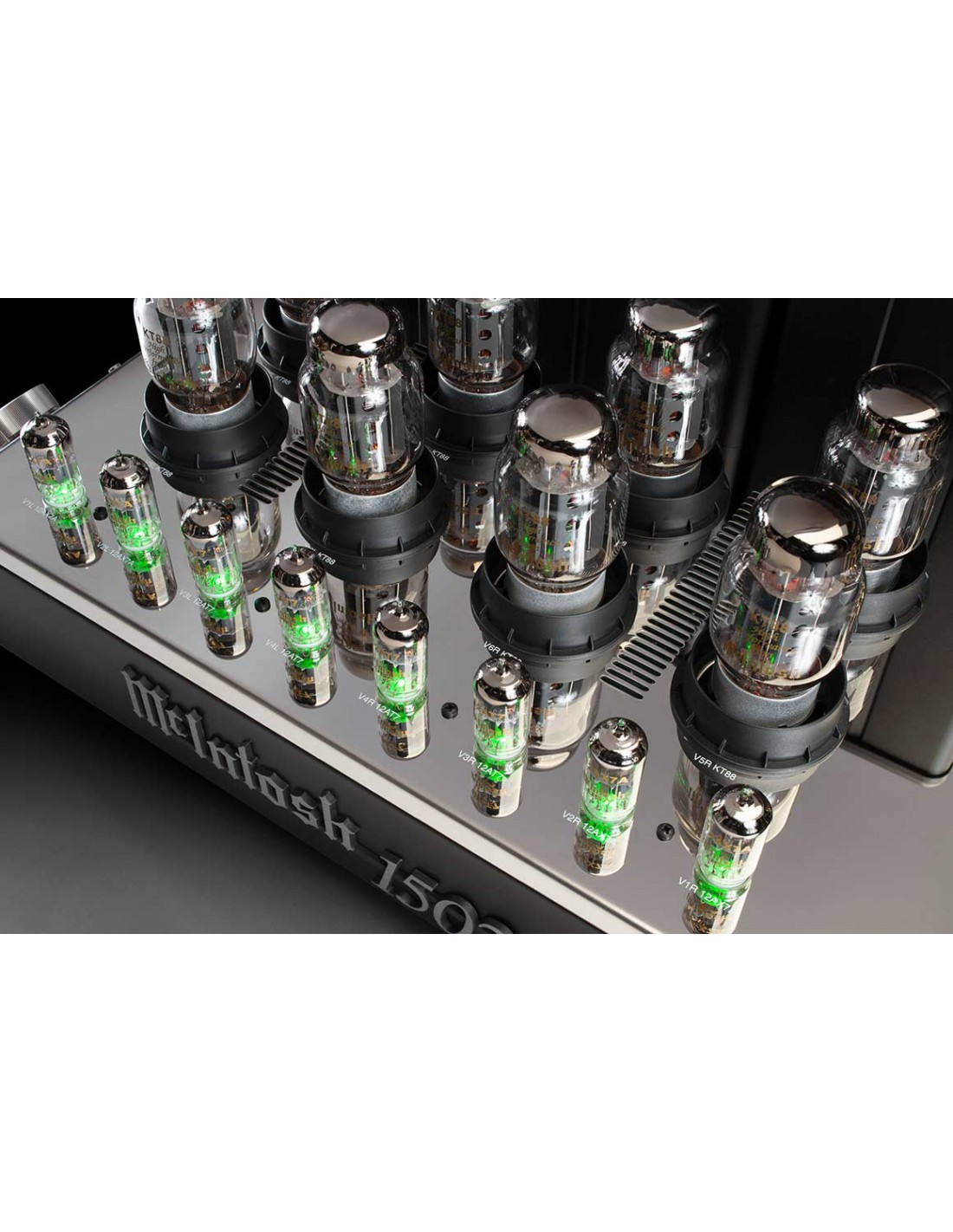

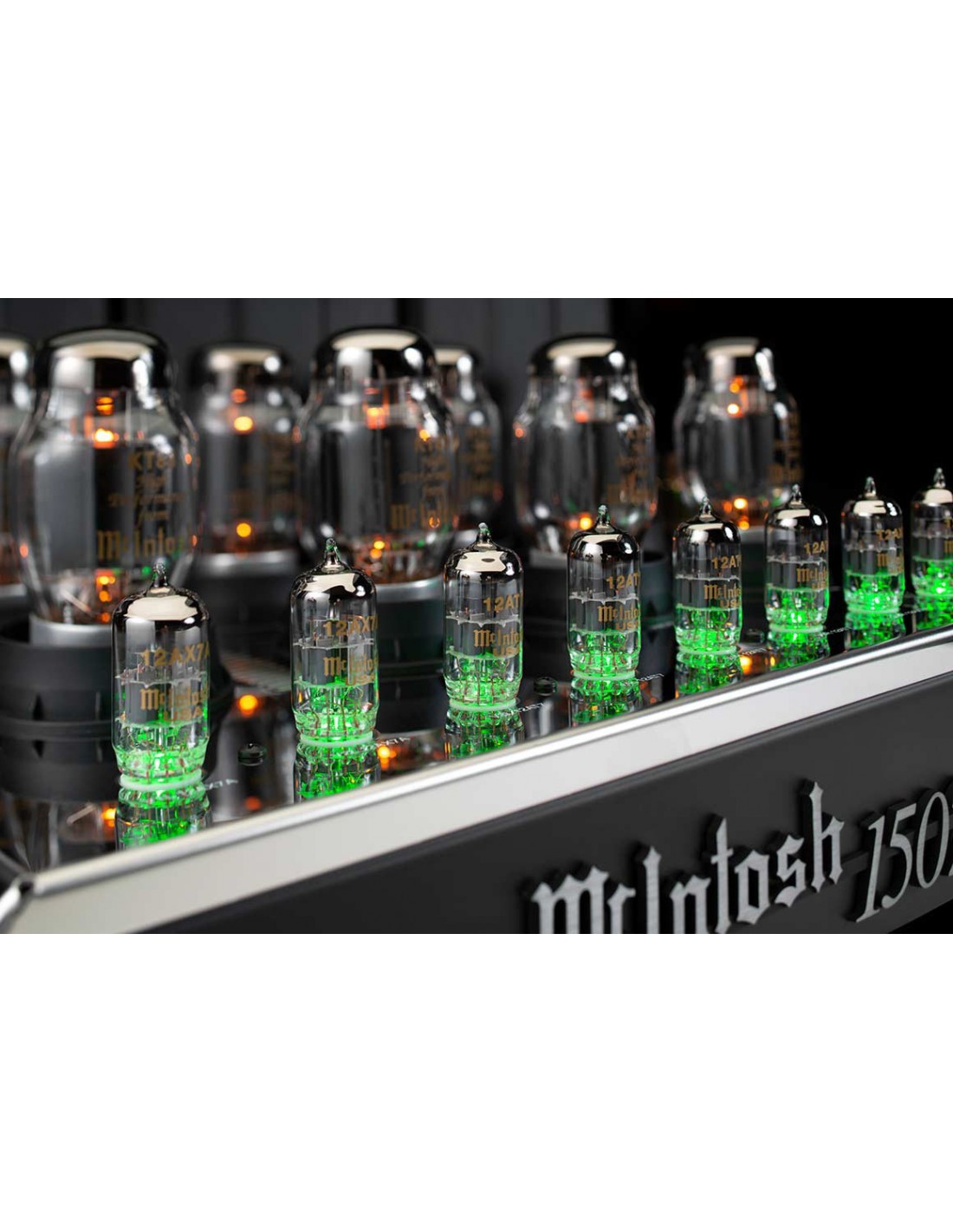

  Vacuum Tube: (5) 12AX7A and (1) 12AT7

• Power Consumption (On)

  50 Watts

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)

• Weight

  25 lbs (11.3kg)

• Shipping Weight

  41.4 lbs (18.8kg)
