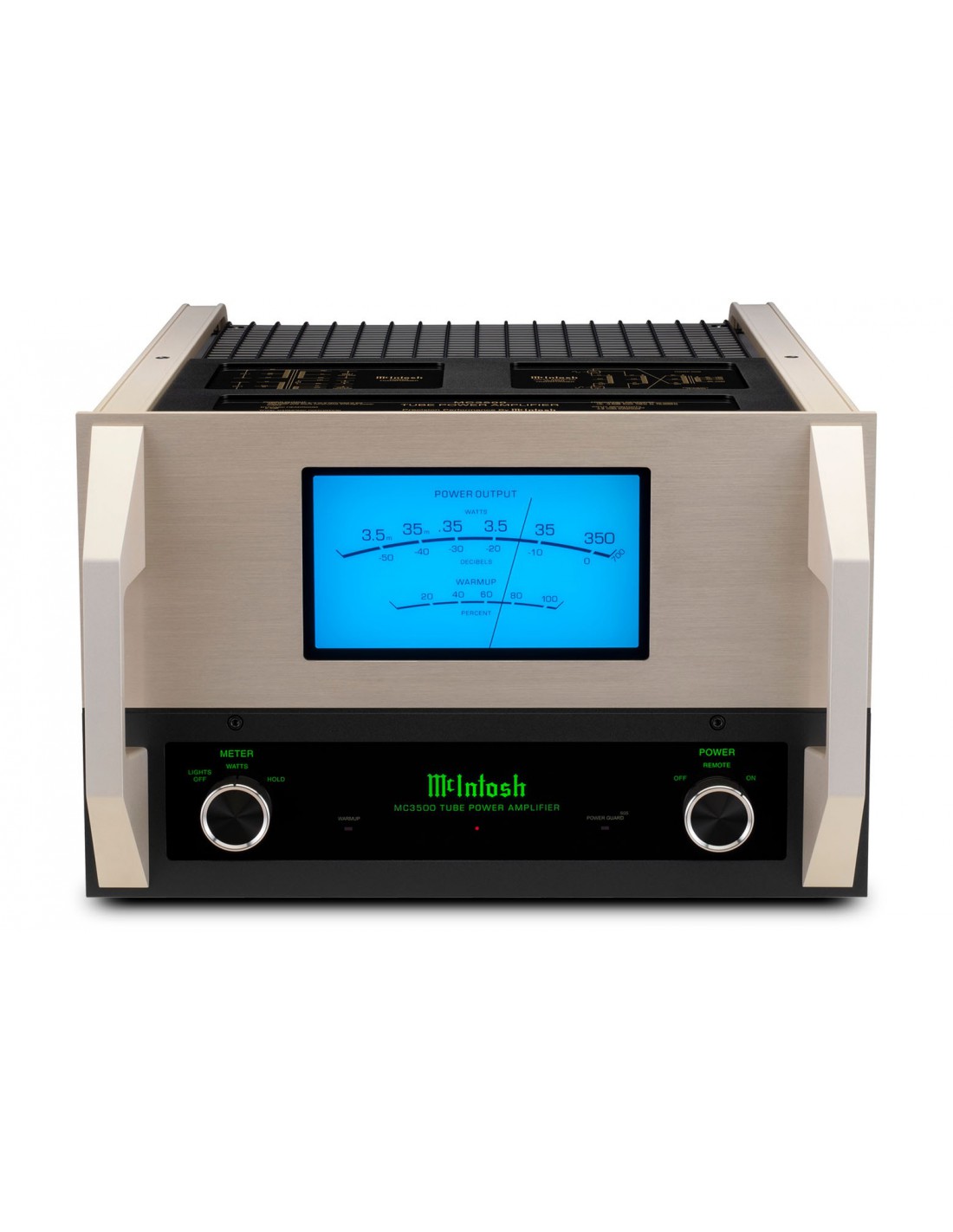

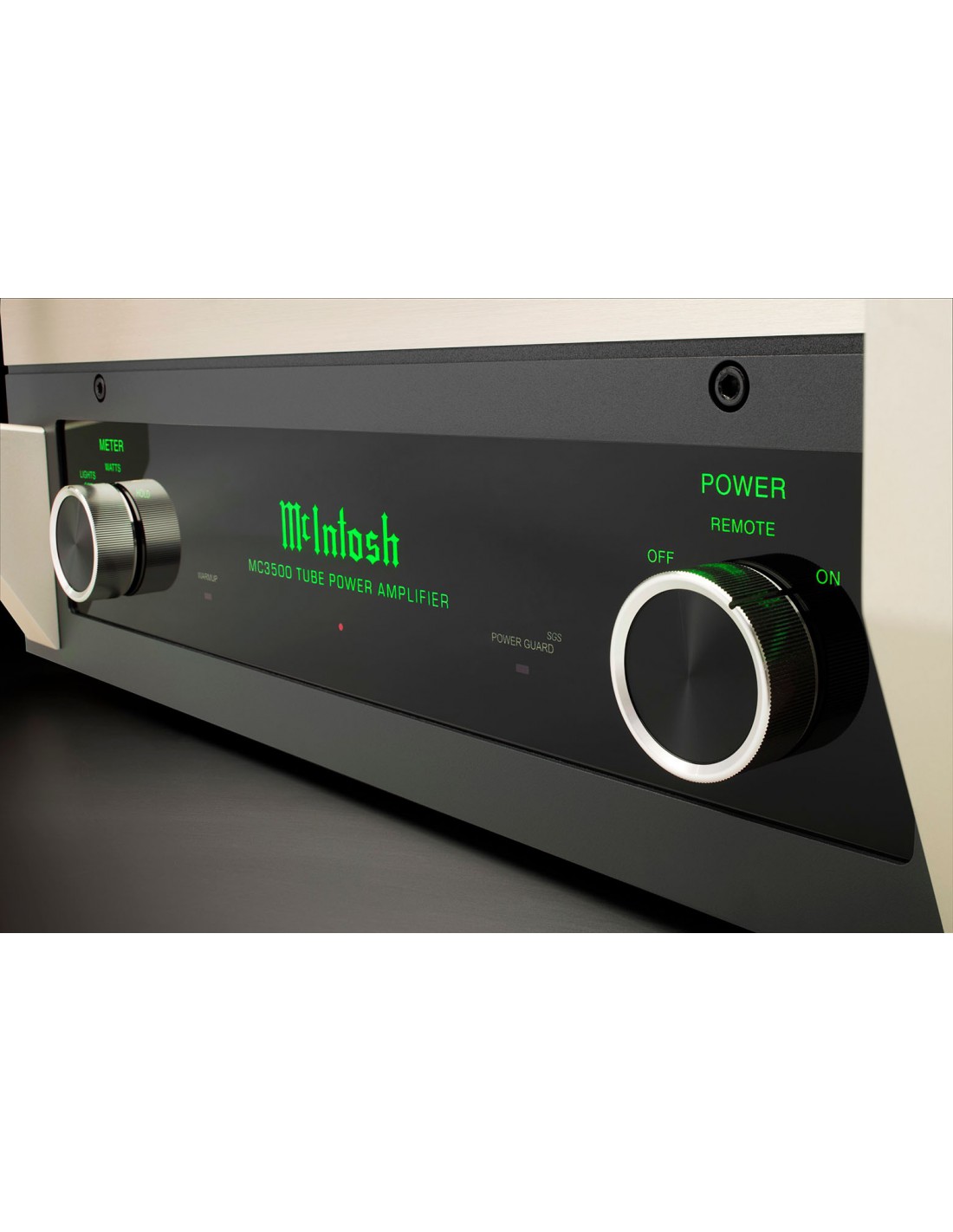

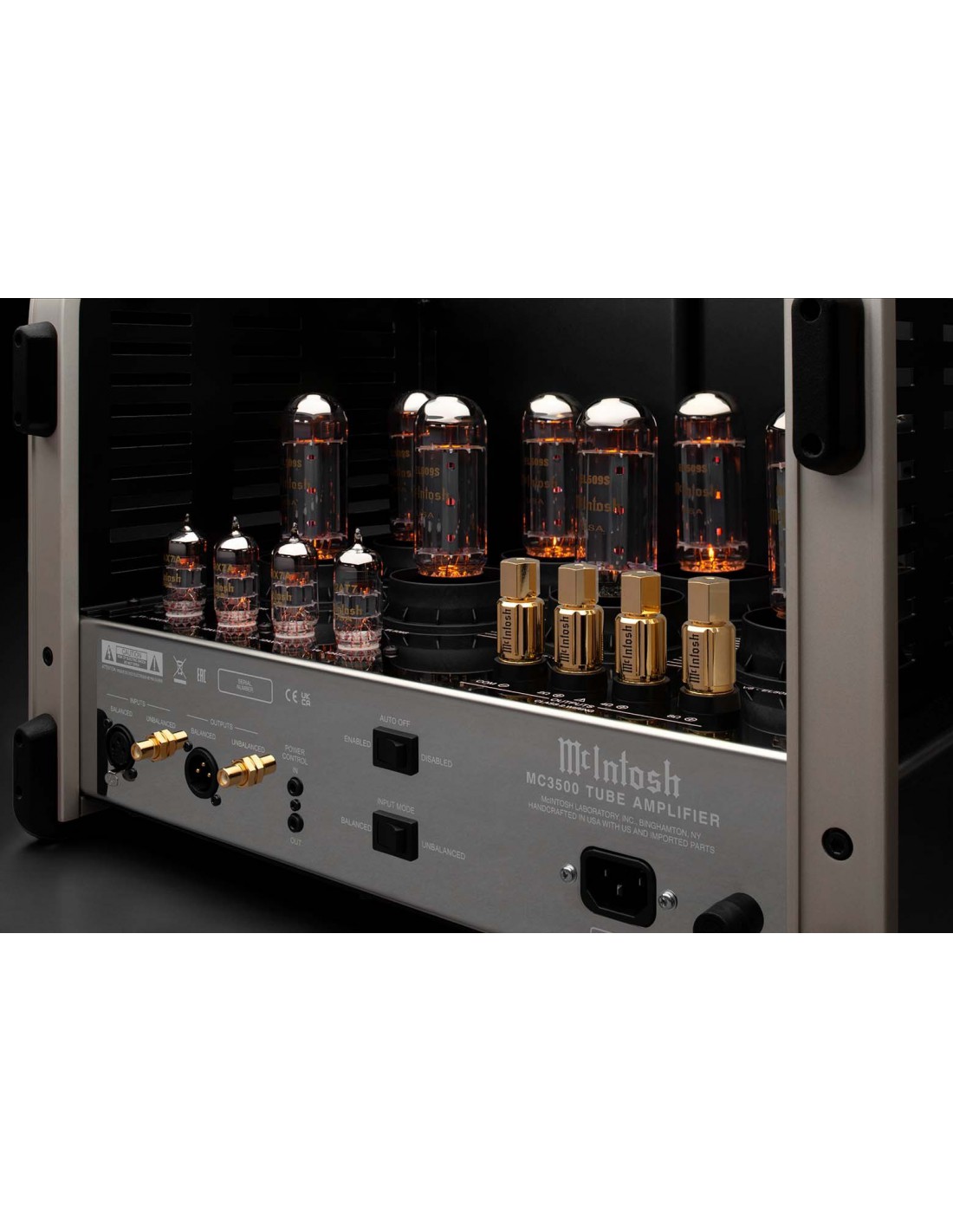

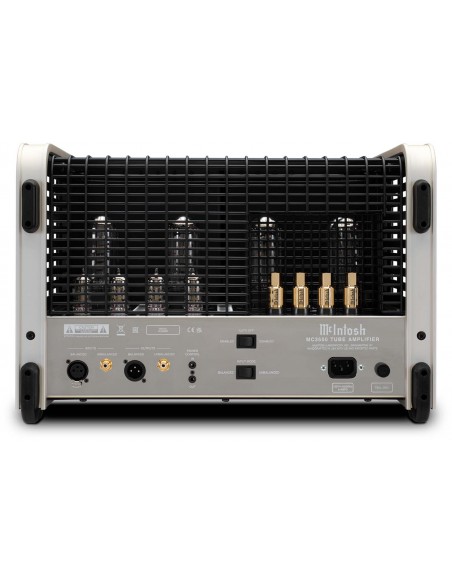

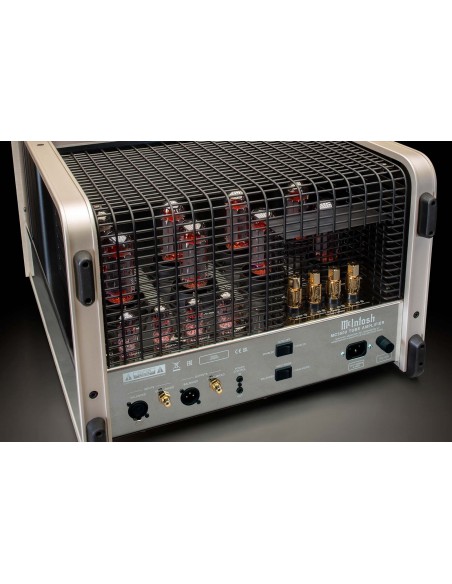

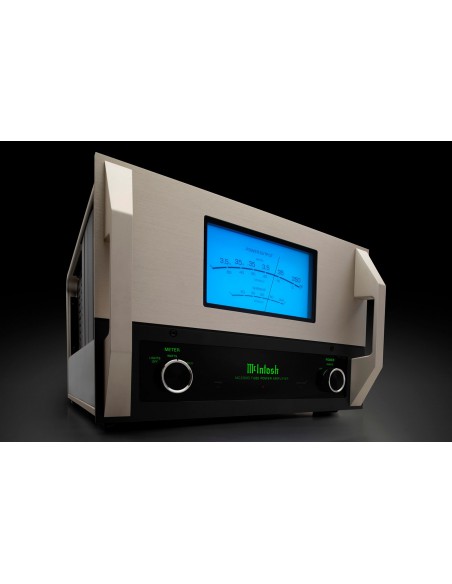

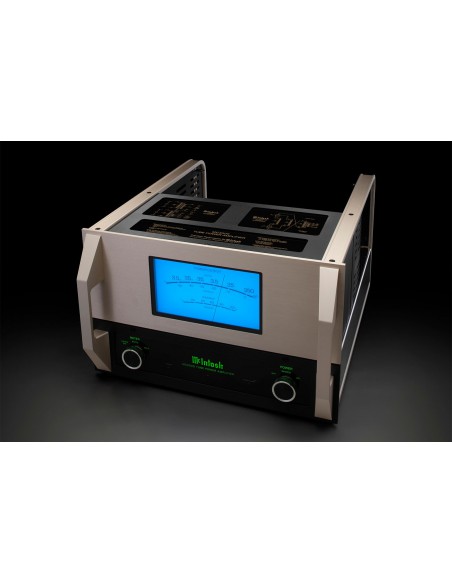

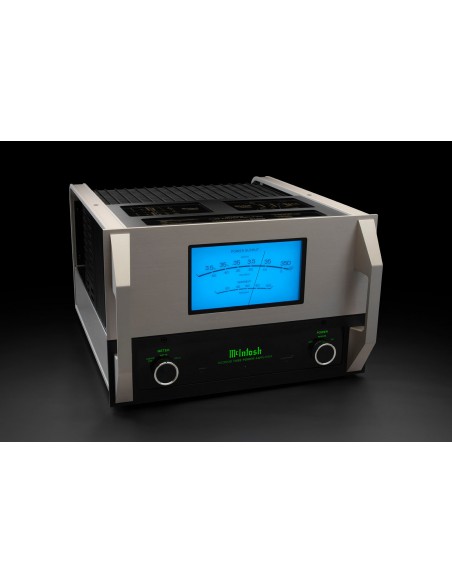

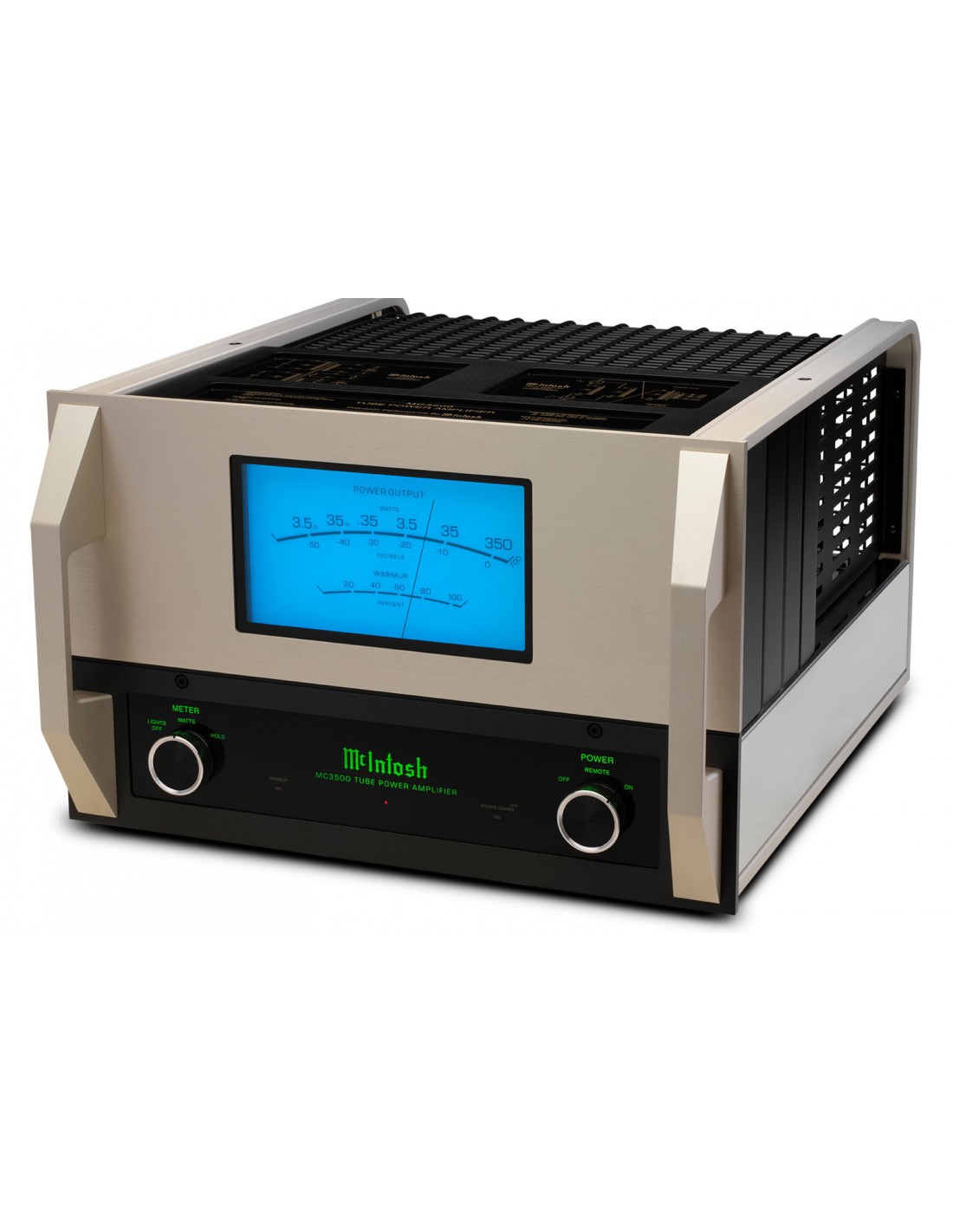

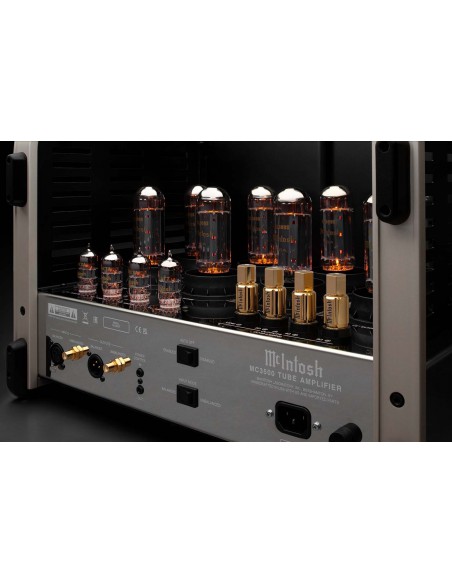

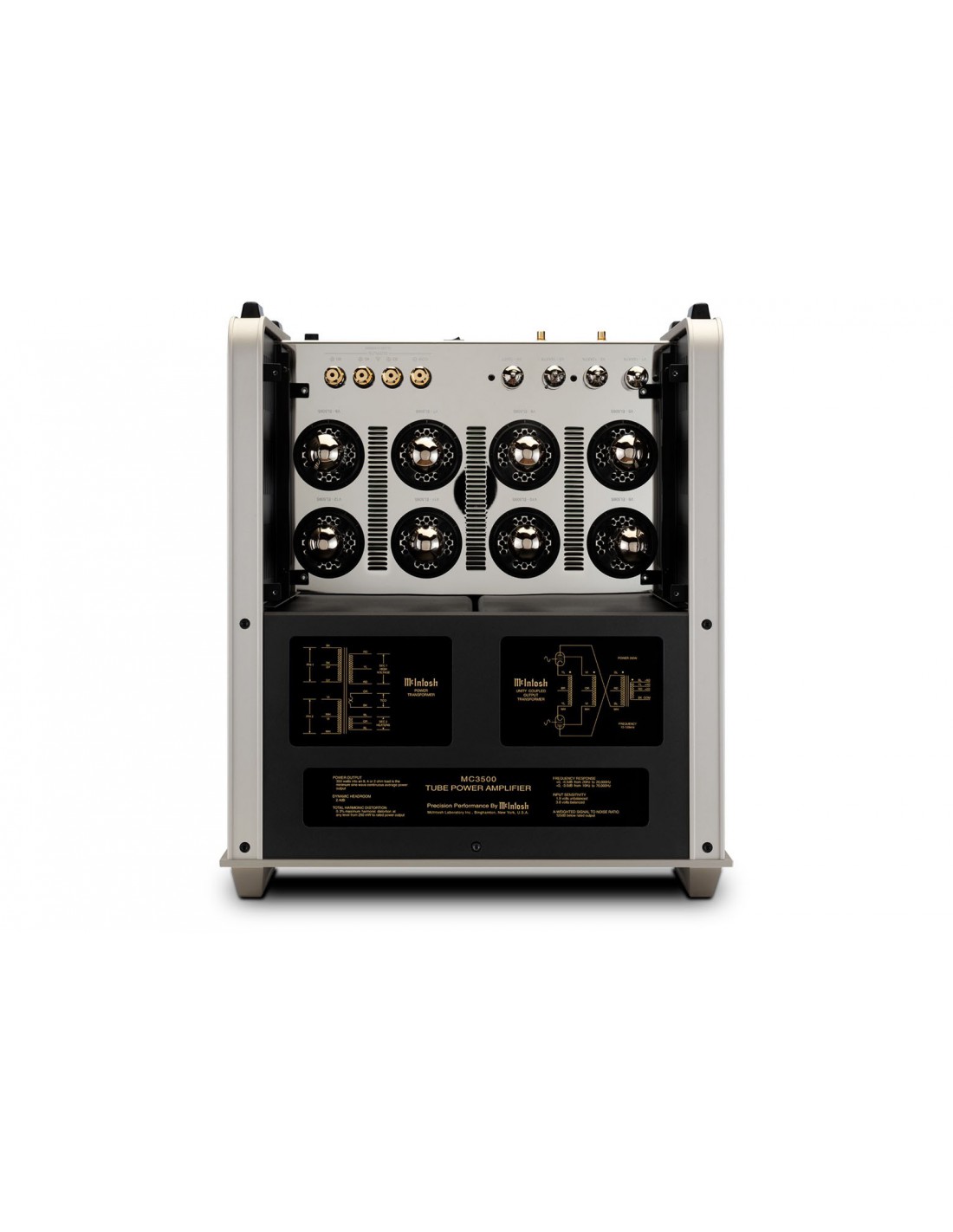

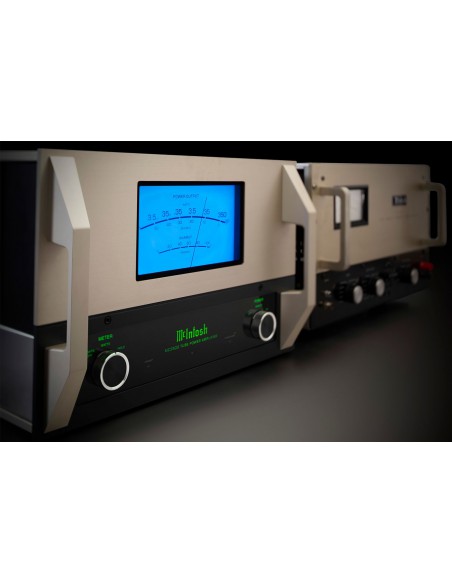

McIntosh MC3500

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  350W @ 2, 4 or 8 Ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.3% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz

• S/N below rated output

  120dB

• Dynamic Headroom

  2.4dB

• Damping Factor

  >25 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.5dB from 20Hz to 20,000Hz
  +0, -3.0dB from 10Hz to 70,000Hz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

GENERAL SPECIFICATIONS

• Circuit Configuration

  Unity Coupled

• Circuit Design

  Vacuum Tube

• Mono Bridge

  No

• Mono Parallel

  No

• Output Type

  Unity Coupled Output Transformer

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  Yes

• Front Panel

  Machined aluminum with handles

• Illumination

  Direct LED

• Chassis Style

  Polished stainless steel

CONNECTIVITY

• Speaker Binding Post Type

  Patented Solid Cinch™ Speaker Binding Posts

WEIGHTS & DIMENSIONS

• Unit Dimensions (W x H x D)

  18" (45.7cm) x 11-13/16" (30cm) x 21-5/8" (54.9cm)

• Unit Weight

  121 lbs (54.9 kg)

• Shipping Weight

  147 lbs (66.7 kg)
