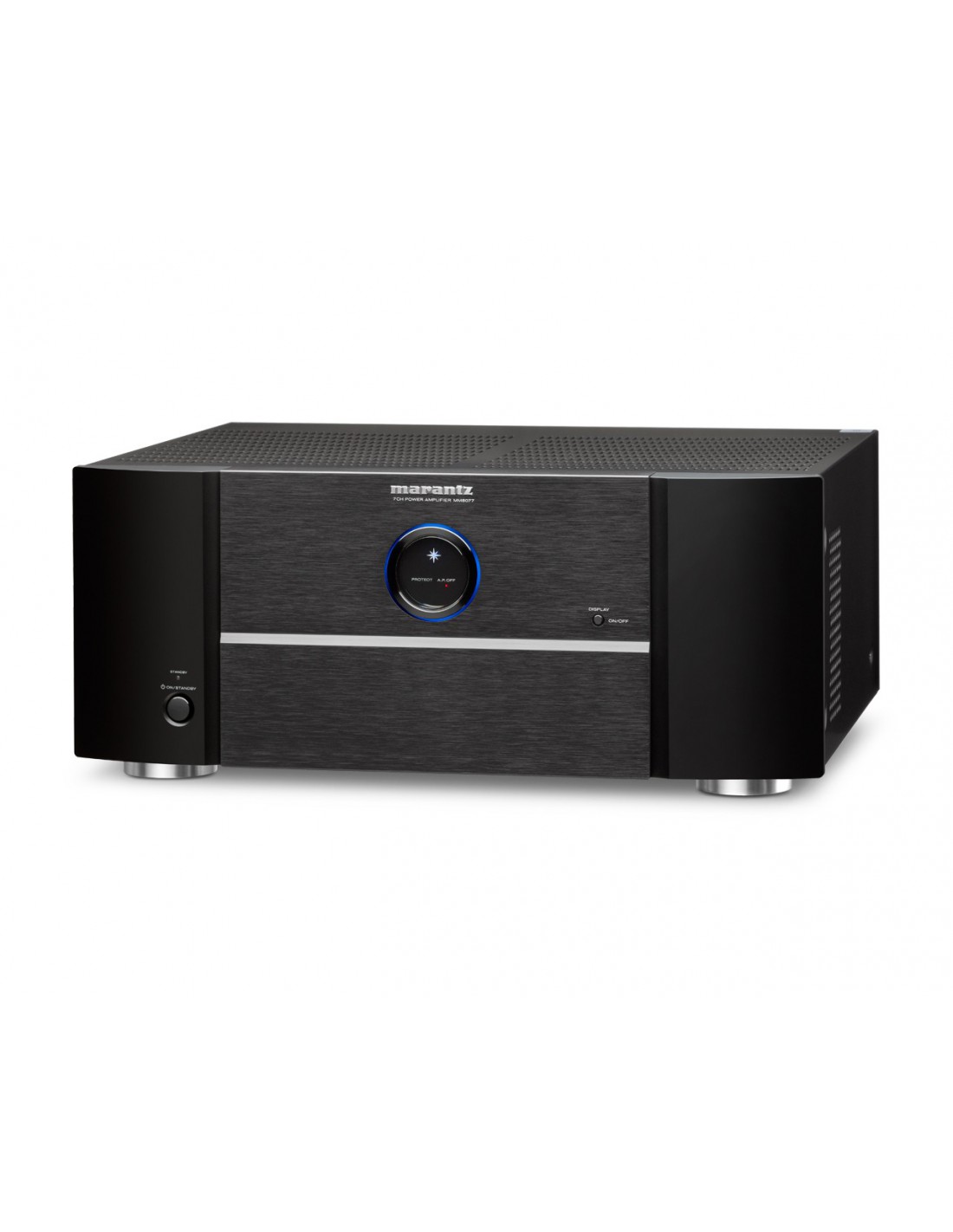

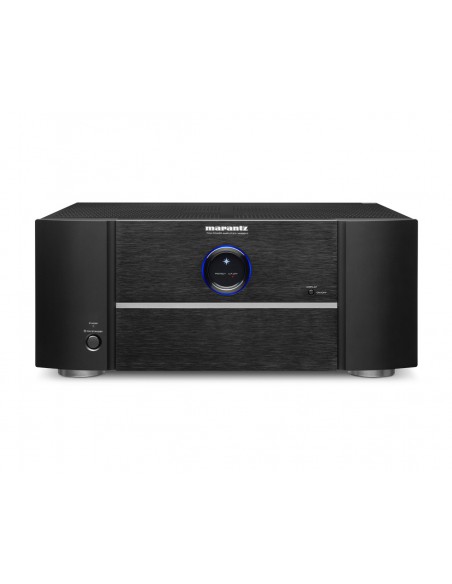

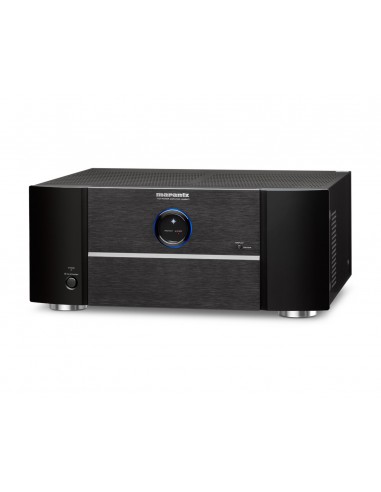

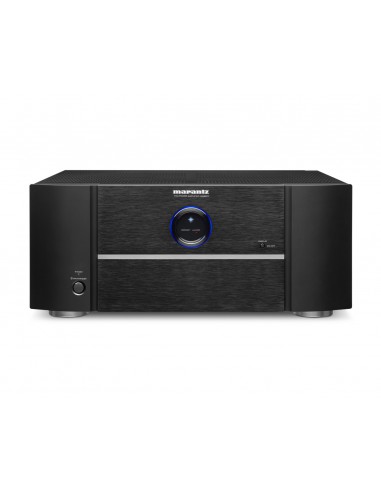

MM8077 (black)

FEATURES MM8077

• Channels 7
• Current Feedback Topology •
• Power Transformer: Toroidal/El • / -
• High Grade Audio Components •
• Customised Components •
• Aluminium extrusion heatsink •
• Copper plated chassis •

OTHERS

• Linear Drive Power Supply •
• Input Buffer Amp (All inputs/CD only) • / -
• Solid heatsink with tunnel •
• Power Amp Direct •
• Auto standby mode •

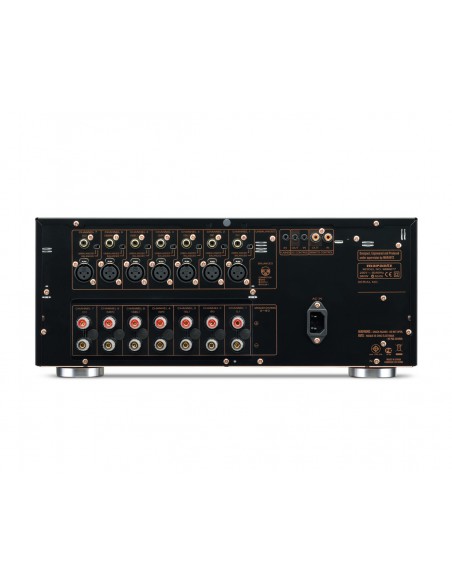

INPUTS/OUTPUTS

• Balanced In/Out 7 / -
• Pre-Out/Main In - / 7
• Power Amp Direct In •
• Gold Plated Chinch •
• Speaker terminal: Screw/Marantz/WBT • / - / -
• Number of terminals 7
• Marantz remote bus •
• Remote power control (Trigger In/Out) •
• Flasher In/IR receiver In • / -

SPECIFICATIONS

• Power Output (8/6 Ohm RMS) 150/180 Watts
• Frequency Response 10Hz-100kHz (+- 3dB)
• Total Harmonic Distortion 0.03%
• Damping Factor 100
• Input Sensitivity: High level 1.2V/22 kohm
• Input Sensitivity: Balanced High level 2.4V/30 kohm
• Signal to Noise Ratio: High level 105 dB

GENERAL

• Available colors: Black •
• Metal Front Panel •
• Power Consumption in W 880
• Standby Consumption in W 0.4
• Auto Power off •
• Detachable Power Cable •
• Maximum Dimensions (W x D x H) 440 x 384 x 185 mm
• Metal Front Panel •
• Weight in kg 18.0
