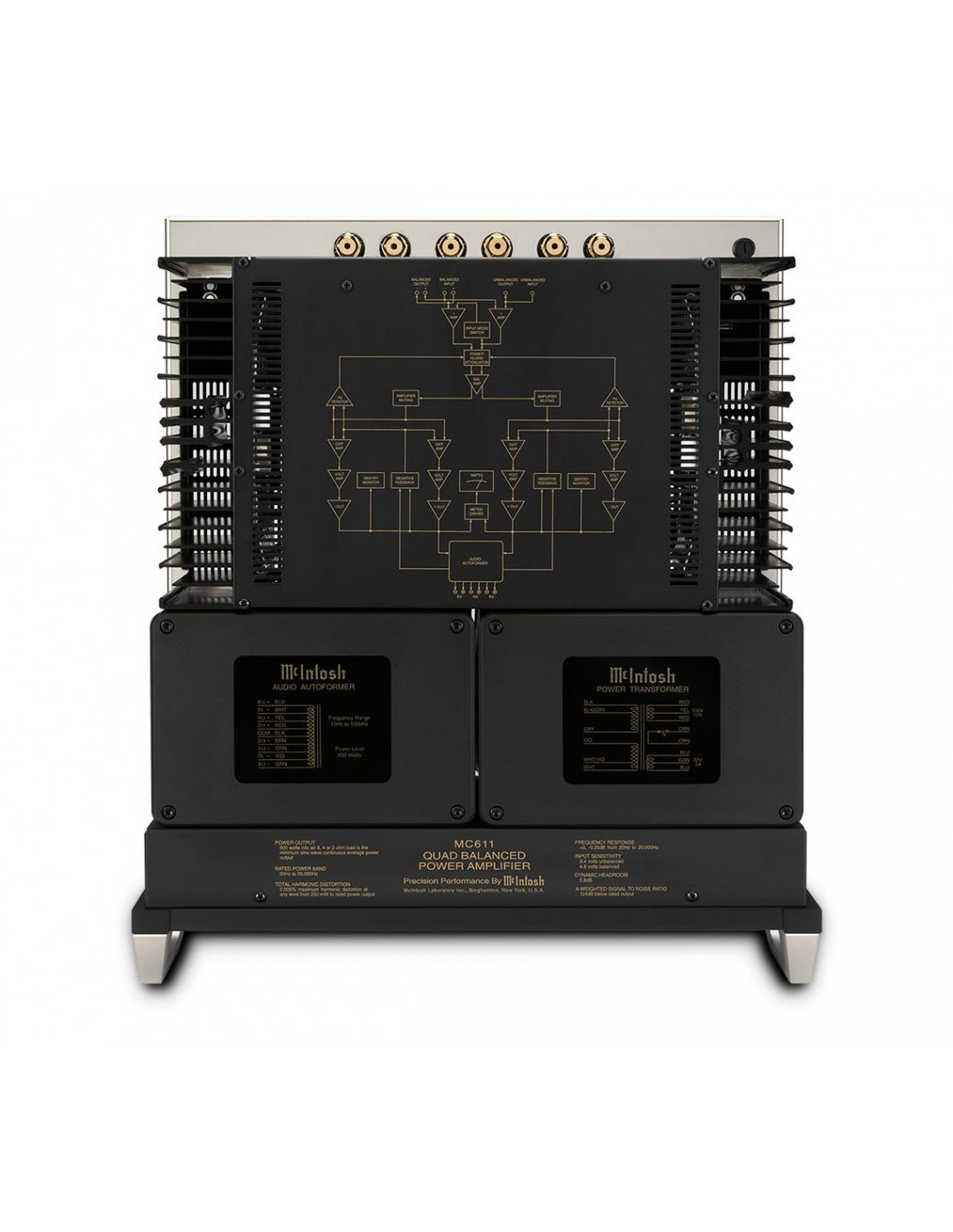

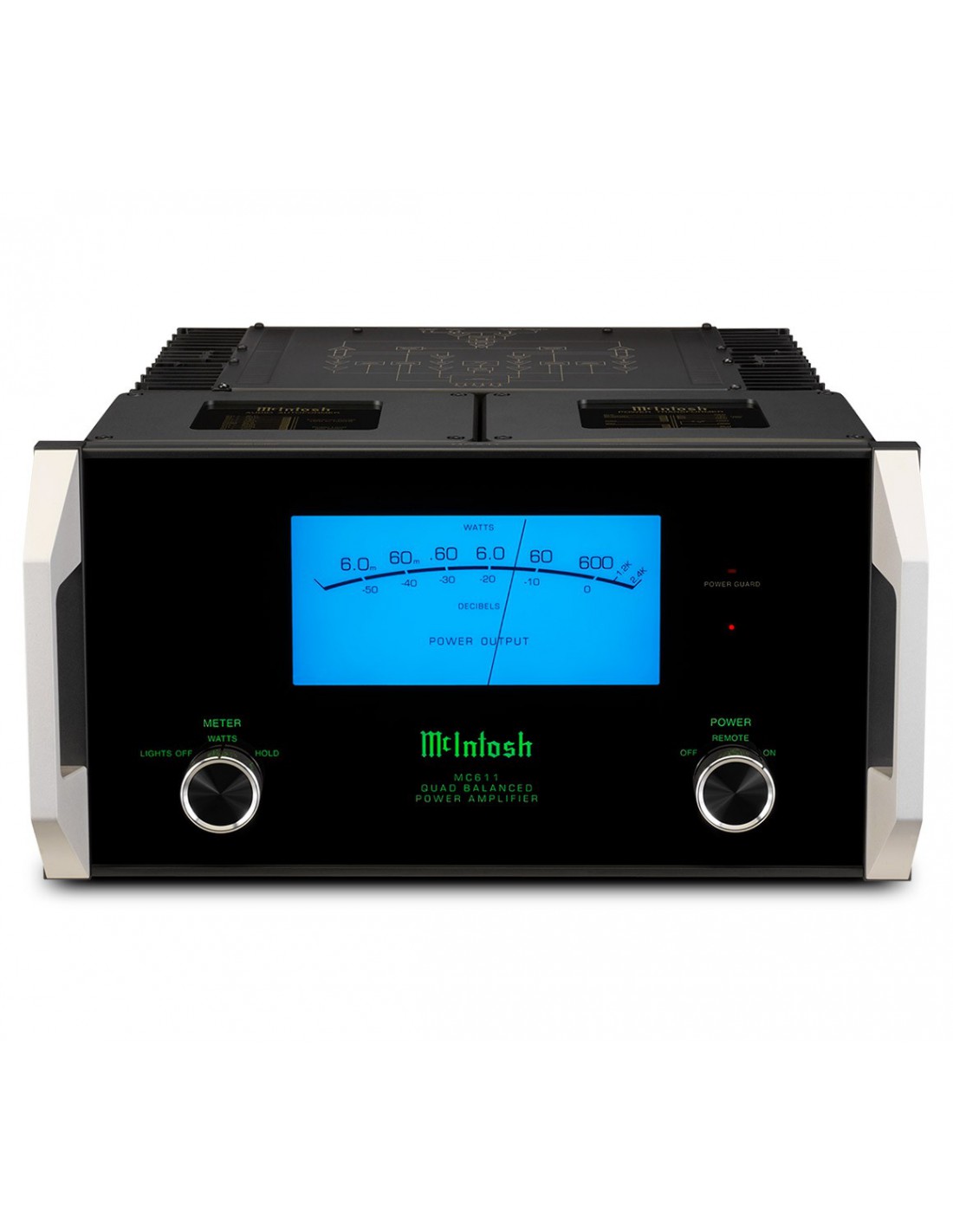

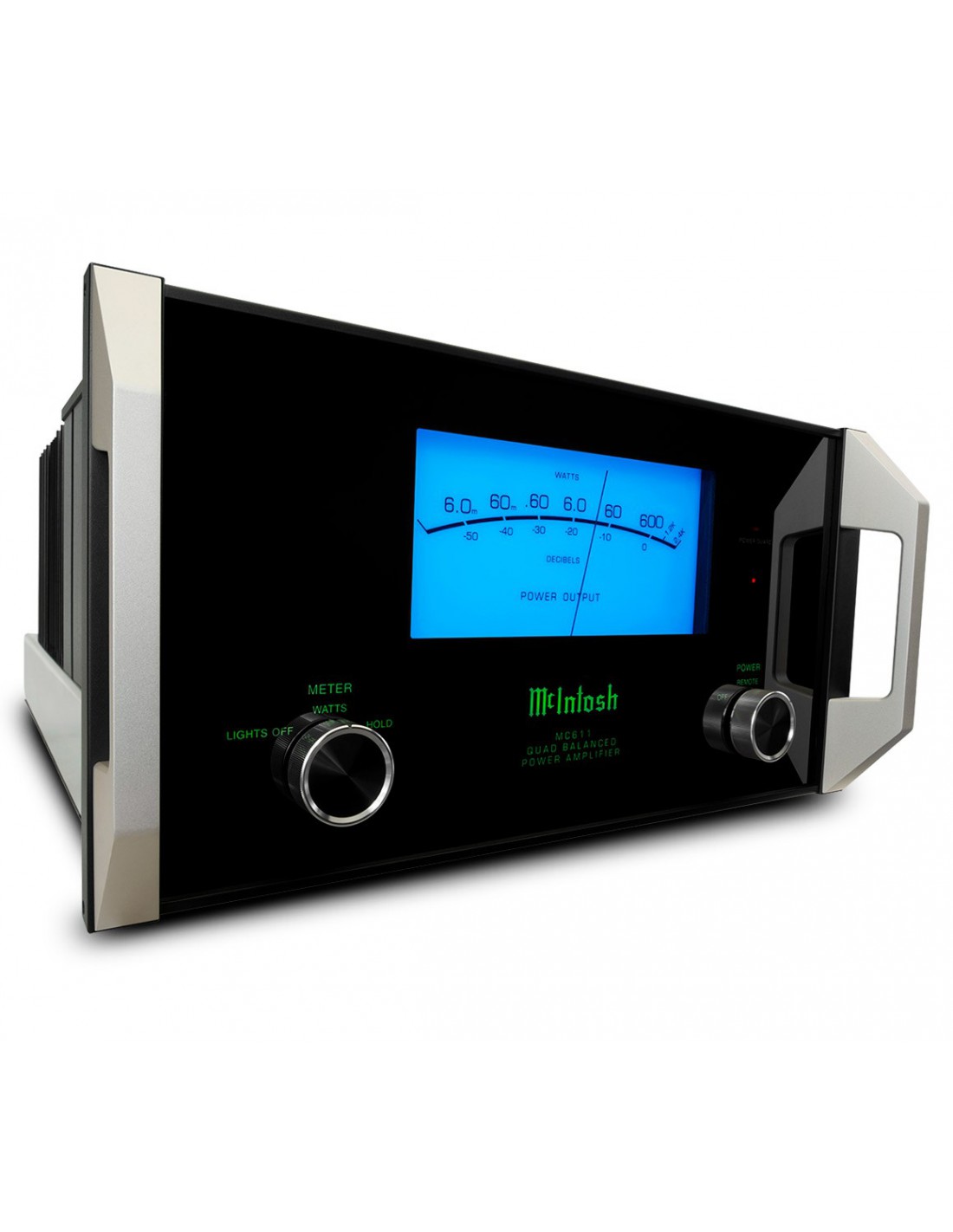

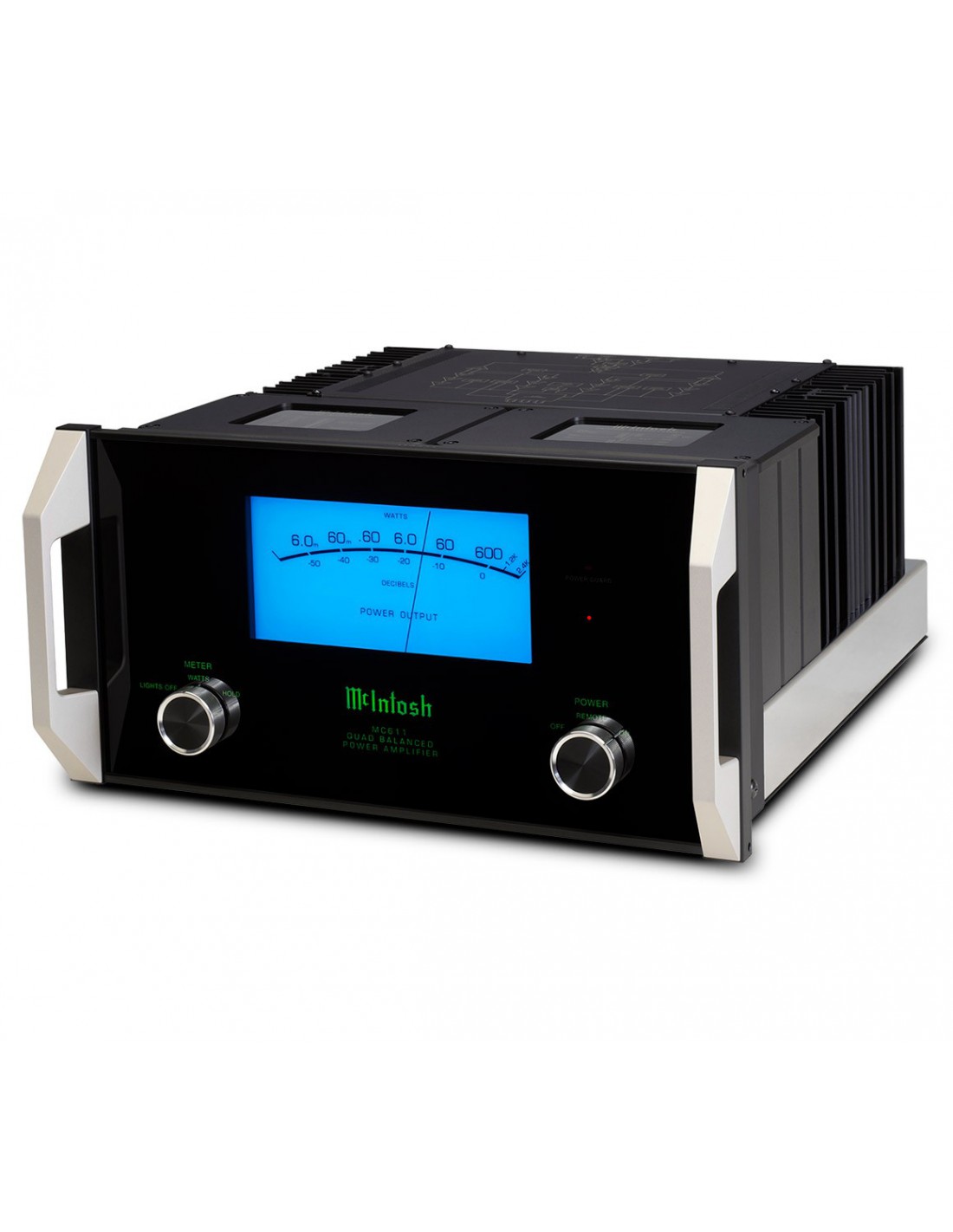

McIntosh MC611

ELECTRONIC SPECIFICATIONS

• Power Output per Channel

  600 Watts @ 2, 4 or 8 Ohms

• Number of Channels

  1

• Total Harmonic Distortion

  0.005%

• S/N below rated output

  Balanced: 124dB
  Unbalanced: 120dB

• Dynamic Headroom

  2.8dB

• Damping Factor

  >40 Wideband

• Rated Power Band

  20Hz to 20kHz

• Frequency Response

  +0, -0.25dB from 20Hz to 20,000Hz
  +0, -3.0dB from 10Hz to 100,000Hz

CONTROL

• Remote Power Control

  Yes

• Multi-Channel DB25 Cable

  N/A

GENERAL SPECIFICATIONS

• Circuit Configuration

  Quad Balanced

• Circuit Design

  Solid State

• Mono Bridge

  N/A

• Mono Parallel

  N/A

• Autoformer

  Yes

• Meters

  Yes

• Meter Light Switch

  Yes

• Balanced Input

  1

• Front Panel

  Glass with handles

• Illumination

  Direct LED

• Chassis Style

  Polished stainless steel & black painted steel

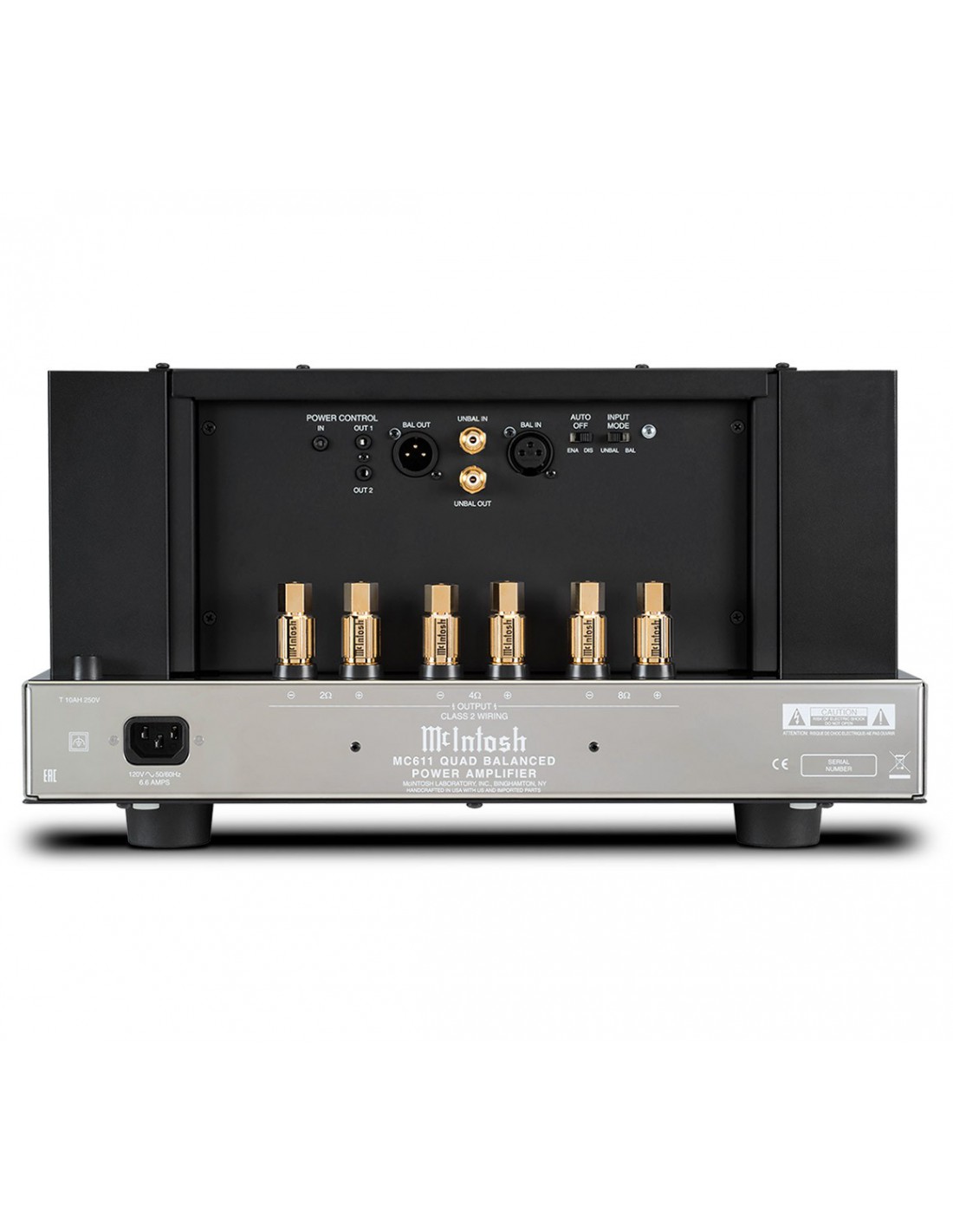

CONNECTIVITY

• Speaker Binding Post Type

  Patented Solid Cinch™ Speaker Binding Posts

WEIGHTS & DIMENSIONS

• Dimensions (W x H x D)

  17-1/2" (44.45cm) x 9-7/16" (23.97cm) (including
  feet) x 22" (55.88cm) (including front panel, handles and cables)

• Weight

  97.5 lbs (44.32 kg)

• Shipping Weight

  130.5 lbs (59.32 kg)
