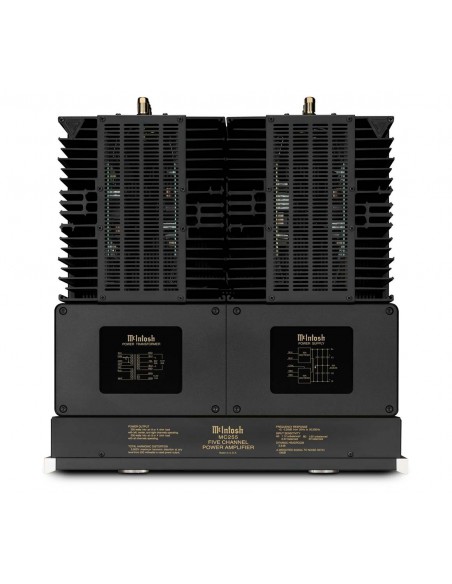

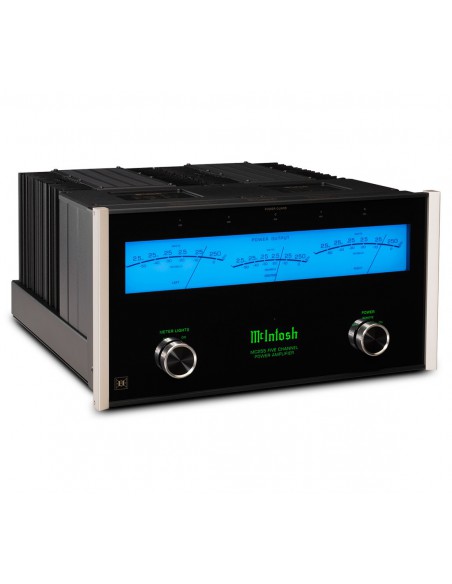

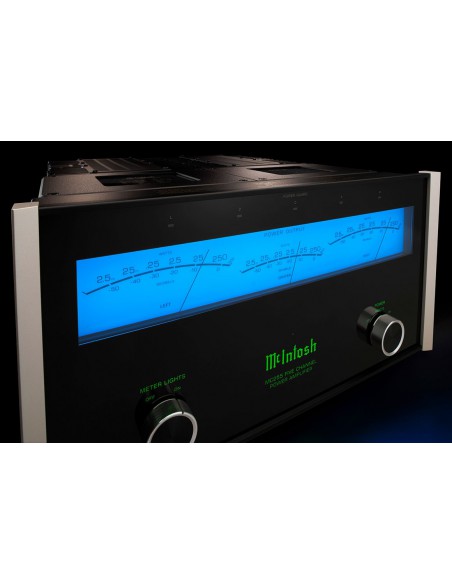

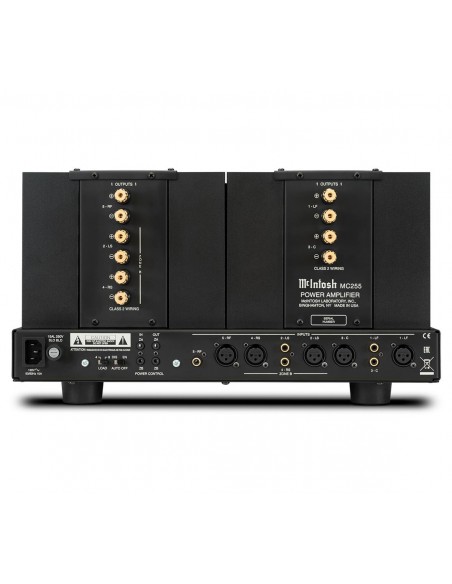

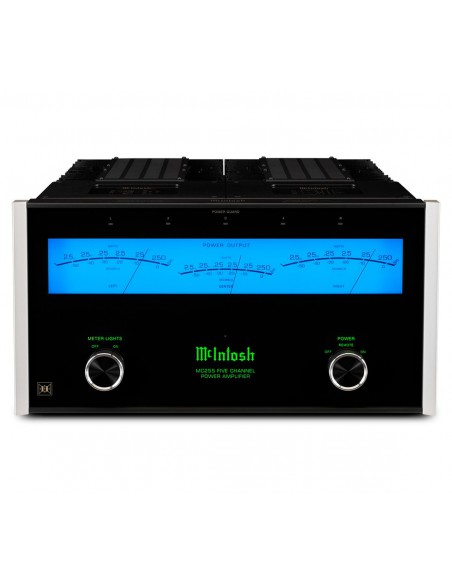

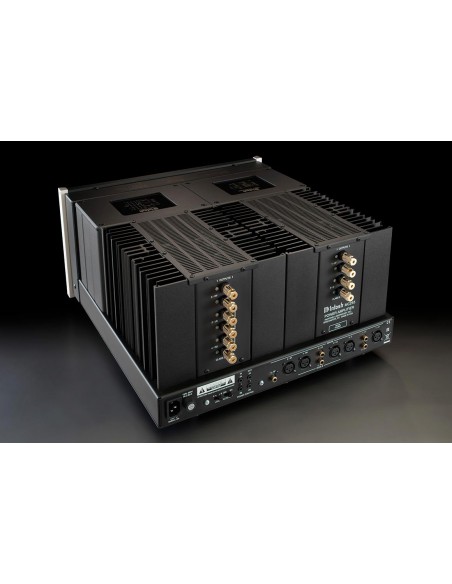

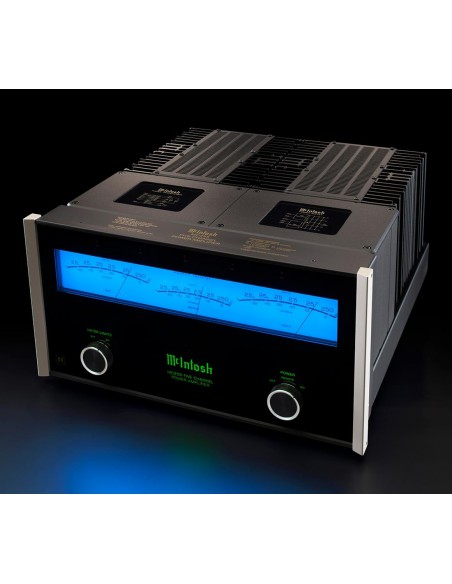

MC255
€11,090.00 gb. / шт. / pc.
5-Channel Solid State Amplifier
- 250 Watts x 3 Channels; 200 Watts x 5 Channels
- TripleView™ Power Output Meter
- More than 100% increase in Dynamic Headroom
- Dynamic Power Manager®; Power Guard®
- Designed for home theaters
ELECTRONIC SPECIFICATIONS
- Power Output per Channel
- 3 Front Channels only: 250W @ 4 or 8 Ohms
All 5 Channels: 200W @ 4 or 8 Ohms
- Number of Channels
- 5
(can also be used as a 2-zone amplifier with 3 channels in zone A and 2 channels in zone B)
- Total Harmonic Distortion
- 0.005%
- S/N below rated output
- 108dB
- Dynamic Headroom
- 3.6dB
- Damping Factor
- >70 @ 4 Ohms
>140 @ 8 Ohms
- Rated Power Band
- 20Hz to 20kHz
- Frequency Response
- +0, -0.25dB from 20Hz to 20,000Hz
+0, -3dB from 10Hz to 100,000Hz
CONTROL
- Remote Power Control
- Yes, 5 or 3 + 2 Channel
- Multi-Channel DB25 Cable
- No
CONNECTIVITY
- Speaker Binding Post Type
- Standard
GENERAL SPECIFICATIONS
- Circuit Configuration
- Push-Pull Complementary
- Circuit Design
- Solid State
- Mono Bridge
- No
- Mono Parallel
- No
- Output Type
- Direct Coupled with Dynamic Power Manager®
- Meters
- TripleView™ Power Output Meter
- Meter Light Switch
- Yes
- Balanced Input
- 5
- Front Panel
- Glass
- Illumination
- Direct LED
- Chassis Style
- Inverted
WEIGHTS & DIMENSIONS
- Dimensions (W x H x D)
- 17-1/2" (44.5cm) x 9-7/16" (23.9cm) (including feet) x 21" (53.3cm) (including front panel and cables)
- Weight
- 89.5 lbs (40.6 kg)
- Shipping Weight
- 122.5 lbs (55.6 kg)
- Dimensions:
- 44.45cm x 23.97cm (including feet) x 53.3cm (including front panel and cables)
- Weight:
- 44.2 kg
- Amplifier Type:
- Amplifiers
- CIRCUIT DESIGN:
- Transistor
- Number Of Channels:
- 5
- Impedance:
- 4 or 8 Ohms
- Power Output Per Chanell (Watt):
- 200 W
- Total Harmonic Distortion:
- 0.005%
- Signal-To-Noise Ratio:
- 112dB
