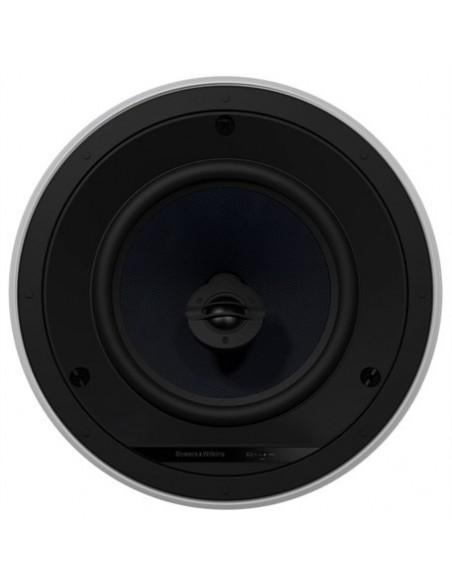

CCM683
BW073
€479.00
Tax included
in-ceiling
| Description | 2-way in-ceiling system |
| Drive Units | 1x ø25mm (1 in) Nautilus™ swirl loaded aluminium dome tweeter 1x ø200mm (8in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 35Hz – 50kHz |
| Recommended Amp Power | 25 – 130w |
| Sensitivity SPL (2.83V, 1m) | 88dB |
| Impedance Nominal (min) | 8? (4.5?) |
| Frame diameter | 290mm (11.4in) |
| Cut-out diameter | 250mm (9.8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |

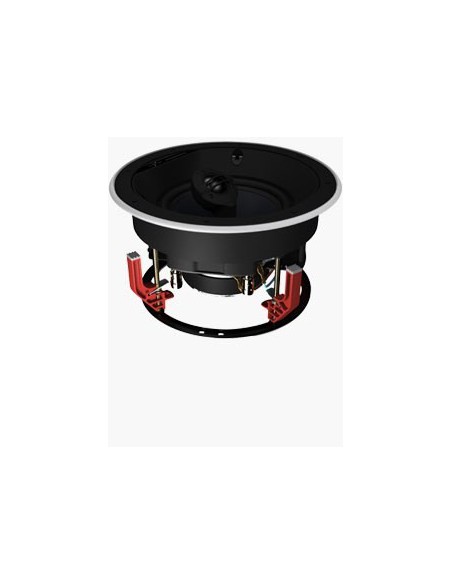

| Pre-mount Kit | C8 |
| Back Box | 6C |
- Series:
- Custom installation 600-Series
