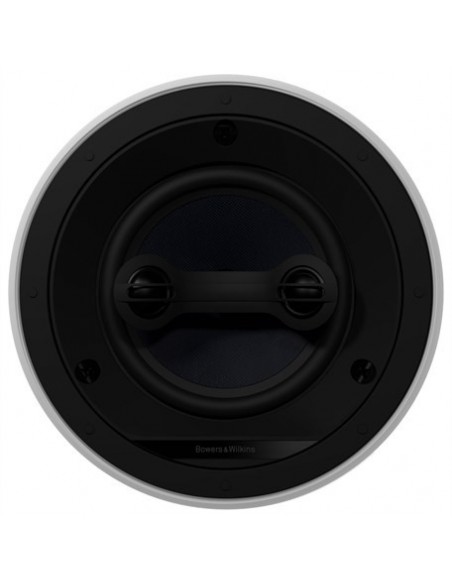

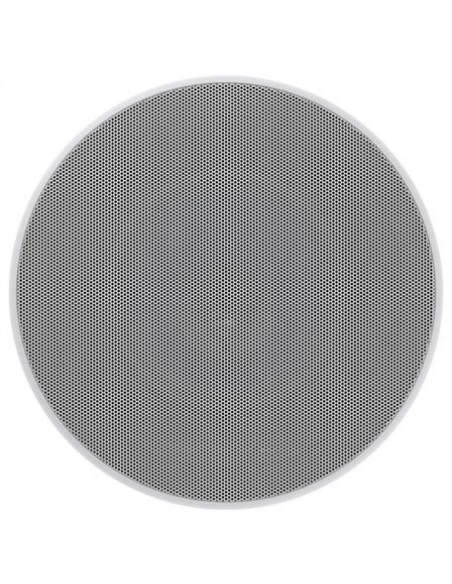

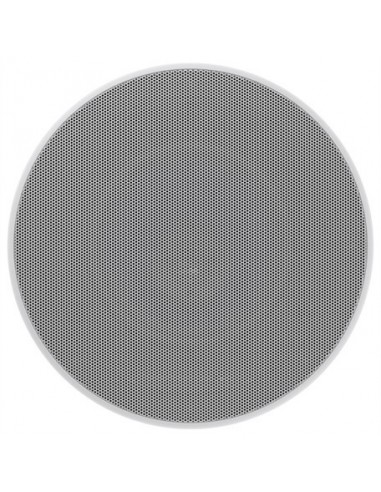

CCM663SR
BW071
€529.00
Tax included
in-ceiling
| Description | 2-way dual channel in-ceiling system |
| Drive Units | 2x ø20mm (1in) soft dome tweeter 1x ø150mm (6in) blue Kevlar® cone bass/midrange |
| Frequency Range (-6dB) | 48Hz – 30kHz48Hz – 30kHz |
| Recommended Amp Power | 25 – 80w (per channel) |
| Sensitivity SPL (2.83V, 1m) | 83dB (per channel) 89dB (both channels driven) |
| Impedance Nominal (min) | 8? (4?) (per channel) |
| Frame diameter | 240mm (9.5in) |
| Cut-out diameter | 202mm (8in) |
| Depth behind surface | 133mm (5.2in) |
| Protrusion | 4mm (0.2in) |
| Pre-mount Kit | C6 |
| Back Box | 6C |
- Series:
- Custom installation 600-Series
