PC-683
SF-PC-683
€1,950.00
Tax included
Acoustics built into the suspended ceiling
| Loudspeaker system | 3 way point in ceiling system. Sealed design. (Optionally openable) |
| Tweeter DADTM driver | 29 mm / 1,1'' |
| Midwoofer | Midrange: 80 mm / 3,1''' |
| Woofer | 2 x 165 mm 2 x 6,5'' |
| Crossover frequency Paracross TopologyTM | 250 Hz -1.650 Hz |
| Frequency response | 38 Hz -25.000 Hz |
| Sensitivity (2.83v/1m) | 90dB SPL |
| Nominal impedance | 4 |
| Suggested amplifier power output | 40W - 200W |
| Long-term max input voltage (IEC-268-5) | 22V rms |
| Frame outer | 283 mm |
| Cut out | 257 mm |
| Depth behind surface | 142 mm |
| Protrusion | 13 mm |

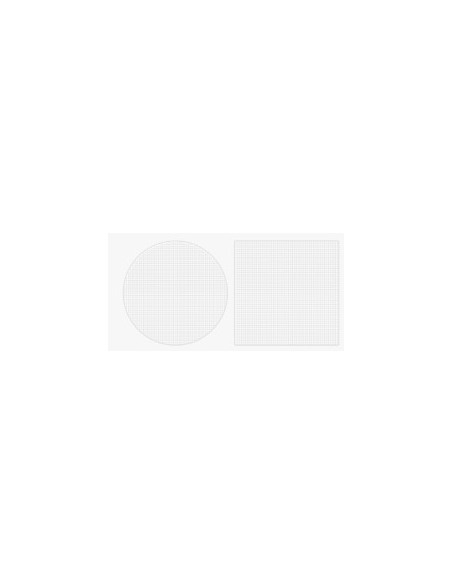

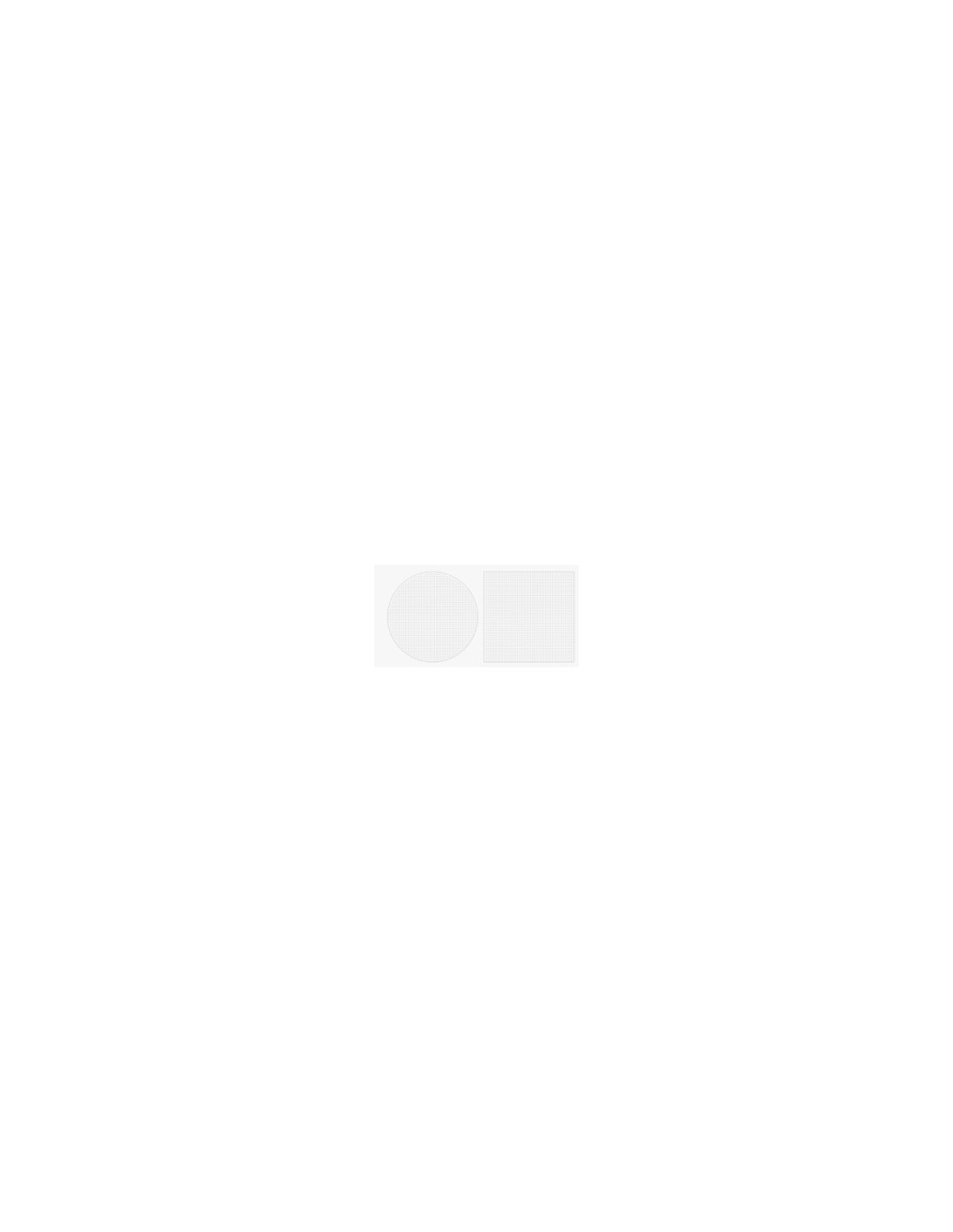

| Included in the box | Bezel-Free square magnetic grilles |
- Series:
- Palladio Level 6
- Sensitivity:
- 90 dB/2,83 V/ 1m
- Frequency:
- 45 – 25,000 Hz(-6dB)
- Power:
- 200 W
- Number of Ways:
- 3
- NOMINAL IMPEDANCE:
- 4 Om
- Dimensions:
- Frame outer: Ø 283 mm / 11.1‘’Cut out: Ø 257 mm / 10.1‘’’Depth behind surface: 142 mm / 5.7‘’Protrusion: 13 mm / 0.51‘’
- Weight:
- 4,56 kg
- Type:
- pasīvs
