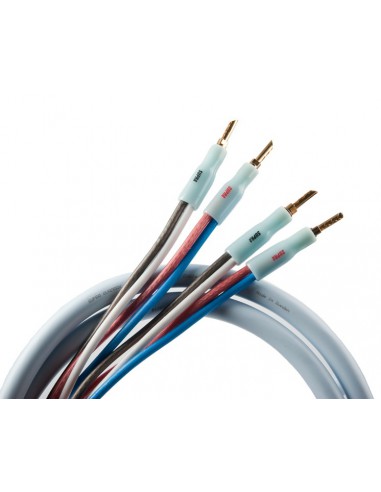

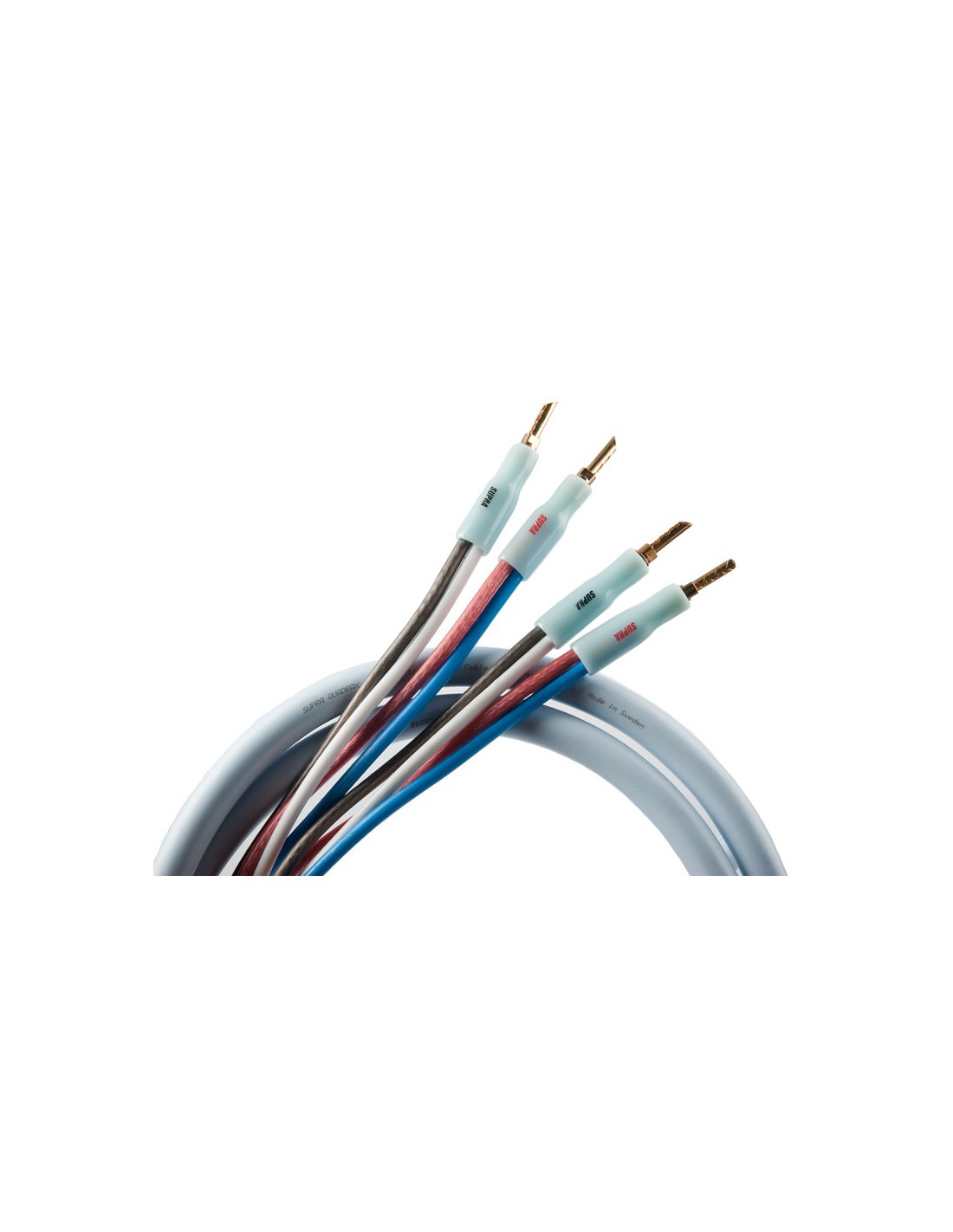

Quadrax 2x4.0 3M
Quadrax 2x4.0 3M
Quadrax 2x4.0 3M
Quadrax 2x4.0 3M

Quadrax 2x4.0 CombiCon 3M

€286.00

€286.00 kompl./компл.

Tax included

Loudspeaker Cable with Emphasis



Mechanical Specifications

Crossection area per conductor 2 / 14 mm/ AWG
Number of conductors 4 pieces
Number of strands per conductor 120 pieces
Strand diameter 0.15 mm
Conductor material Tin plated oxygen free 5N Copper
Conductor insulation and core PP
Jacket Heat and age resistant PVC
External diameter 15 mm
Halogen free/flame retardant   No


Connectors

Contact configuration Full range/Single wire
BFA/Banana Included
Fork (spade) Included
Cable fixing High pressure air tight crimp


Electrical performance

Resistance 8.1 Ohm / km
Inductance 0.28 µH/m
Resistance (Ohm/KM) :
8.1
Induction (uH/m) :
0.28
Area of section (mm2) :
2,0
Amount of tendons :
4
