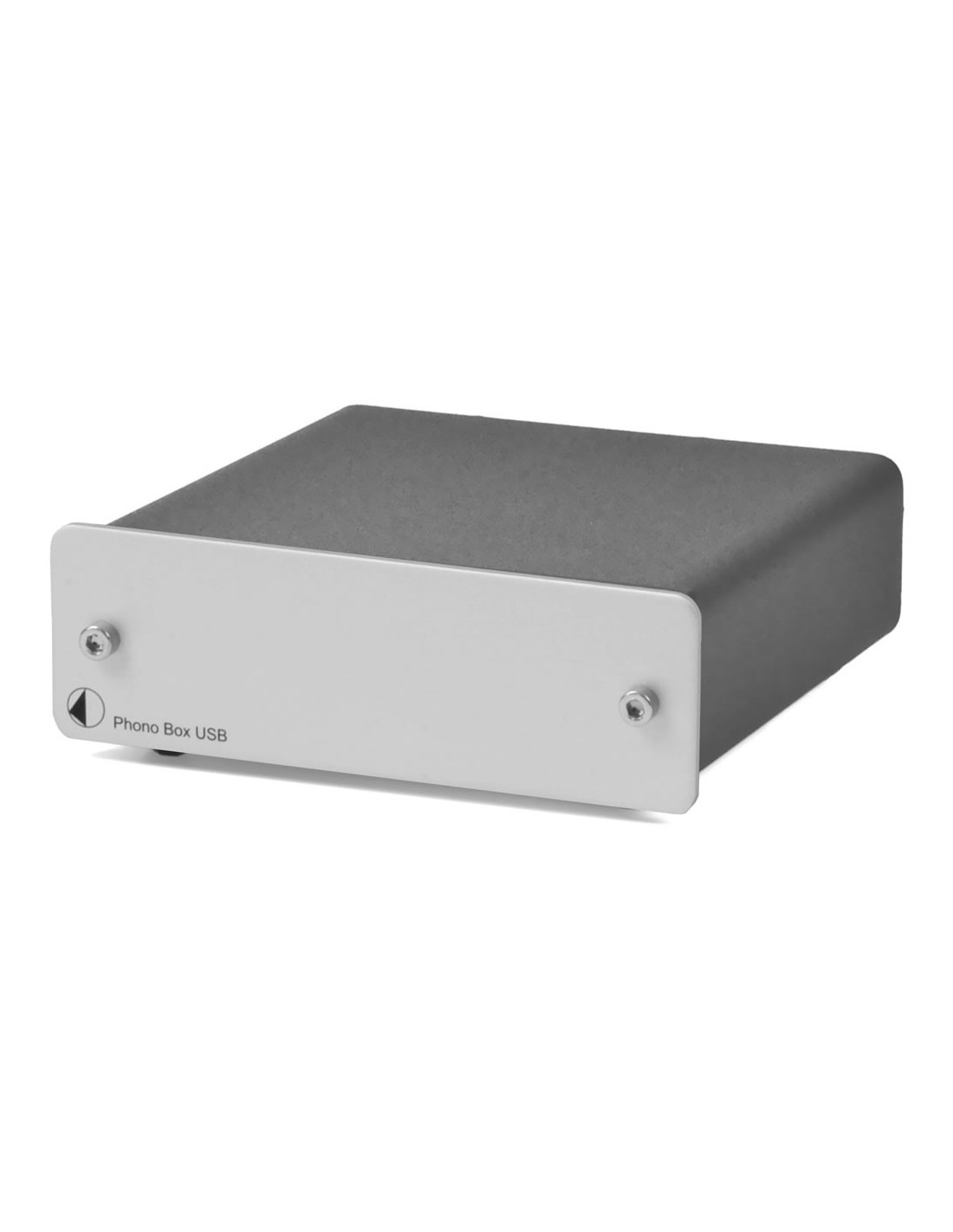

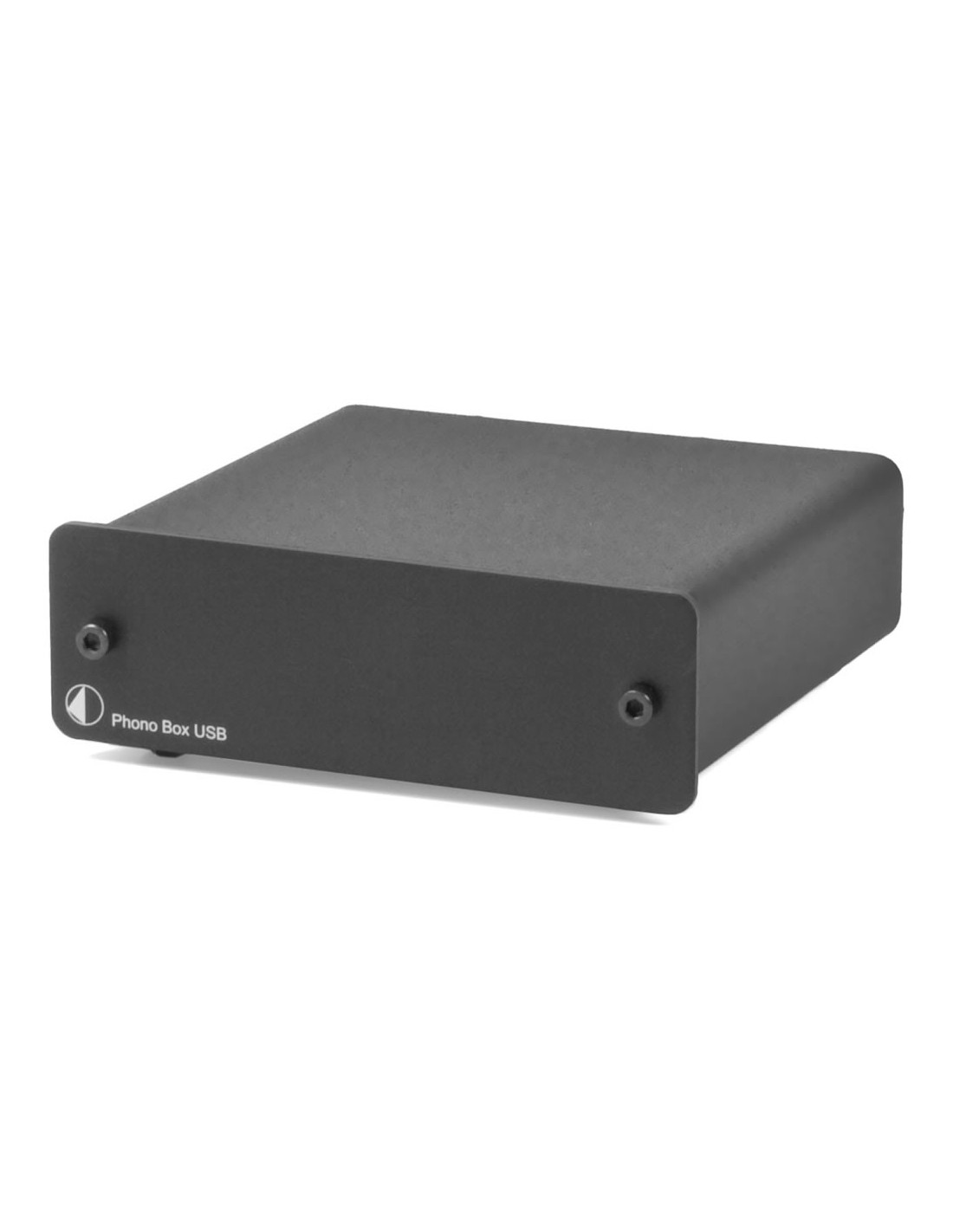

PHONO BOX USB (DC)
PHONO BOX USB (DC)
PHONO BOX USB (DC)
PHONO BOX USB (DC)
PHONO BOX USB (DC)
PHONO BOX USB (DC)

PHONO BOX USB (DC)

PROJECT-805
€140.00

€140.00 gb./шт.

Tax included

MM/MC Phono preamp with line & USB outputs

Color
  • Black
  • Silver


• Preamplifier for MM or MC with switch on rear panel

• NEW! „green“ DC power supply (< 1 watt standby power)

• Precise RIAA equalisation

• High quality A/D conversion with USB out to PC/Mac

• Compatible with Windows®, MacOS® & Linux

• SMD technology for shortest signal paths

• Output stage with ultra-low impedance

• Gold-plated RCA sockets

• DC power supply (< 1 watt standby power)

• Available in black and silver

Technical data

Pro-Ject Phono Box USB

Load capacitance /impedance MM: 47Kohms / 120pF MC: 100 ohms / 120pF
Gain, MM 40dB
Output voltage typically 300mV/1kHz at 3mV/1kHz (MM input)
Gain, MC 60dB
Gain, line level input 11dB
Max. output 9,5Vrms (1kHz)
Noise floor, MM 86dB (94dB - A weighted)
Noise floor, MC 68dB (75dB - A weighted)
THD, MM/ MC 0,01% / 0,05%
RIAA-equalisation curve accuracy 20Hz - 20kHz / max. 0,5dB
Phono Input / line output 1 pair RCA phono sockets
A/D converter 16-Bit Delta Sigma
Sampling rates 32, 44,1 and 48kHz
USB output digital serial data protocol USB 1.1
Operating systems Windows®, MacOS® & Linux
Standby power consumption < 1 Watt
Dimensions W x H x D 103 x 36 x 103 (109 mm with sockets)
Weight 540g
