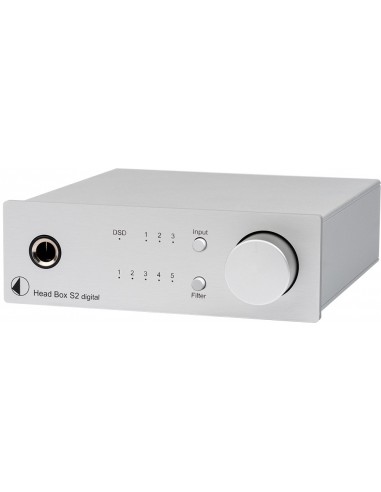

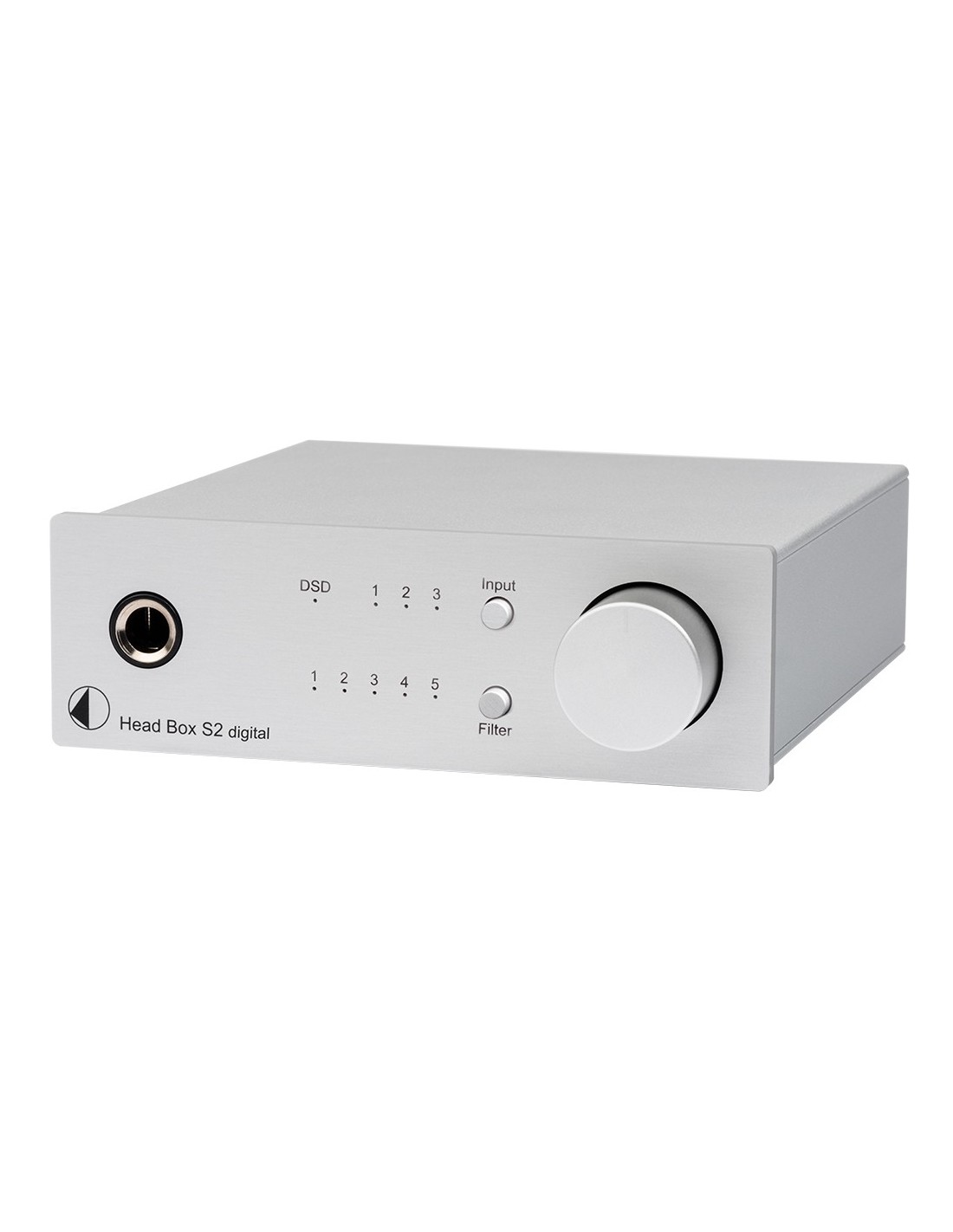

Head Box S2 Digital
Head Box S2 Digital
Head Box S2 Digital
Head Box S2 Digital

Head Box S2 Digital

€300.00
Tax included

Headphone amplifier and DAC with 32bit and DSD256 support



Technical data

  • 3 digital inputs 1x coax (S/PDIF), 1x optical (TOSlink®), USB B
  • D/A-converter 1x ESS9038Q2M 32-bit PCM 768kHz / DSD256
  • Headphone amplifier chip ESS9063
  • Sampling rates 32/44,1/48/88,2/96/176,2/192/352,8/384/768 kHz
  • DSD support DSD64, DSD128, DSD256
  • Filter settings 5 different selectable on front
  • Frequency response 20Hz - 20kHz
  • Analogue out 6.3mm Headphone Out (front), 1x Pre Out (RCA)
  • Output voltage 2,05 Veff
  • Headphone output power 68mW (32Ohms)
  • THD 0,0007%
  • Dynamic Range 120dBA
  • Powerconsumption 5V, micro USB
  • Dimensions W x H x D 103 x 37 x 120 mm
  • Weight 366g without power supply
