FA502iC
Fyne - FA024
€300.00
Tax included
8" IsoFlare Ceiling
| System Type | 2 way IsoFlare loudspeaker for in ceiling or in wall application |
| Recommended amplifier power (Watt RMS) | 30 - 150 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 35Hz - 34kHz |

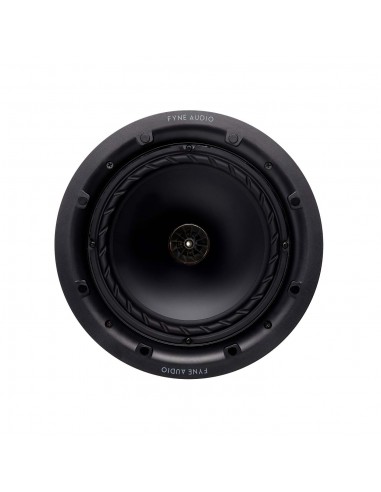

| Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover frequency | 1.7kHz |
| Crossover type | Passive 2nd order low pass, 1st order high pass |
| Peak power handling (Watt) | 300 |
| Dimensions - Dia x Depth | 273 x 123mm (10.6” x 4.8”) |

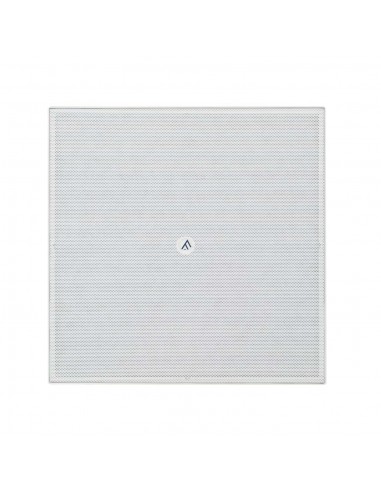

| Square grille dimensions | 281 x 281mm (11.1 x 11.1”) |
| Cut-out diameter | 248mm (9.8”) |
| Depth behind mounting surface | 120.5mm (4.7”) |
| Clamp travel | 5 - 50mm (0.2 - 2.0”) |

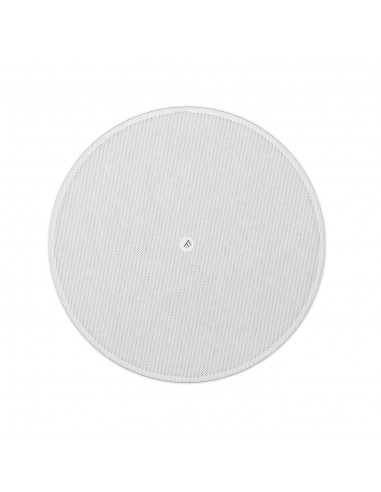

| Round grille diameter | 281mm (11.1”) |
| Suggested min volume | 18 L |
- Series:
- Home Install
- Sensitivity:
- 91 dB/2,83 V/ 1m
- Power:
- 75 W
- Number of Ways:
- 2
- NOMINAL IMPEDANCE:
- 8 Om
- Type:
- pasīvs
No reviews
