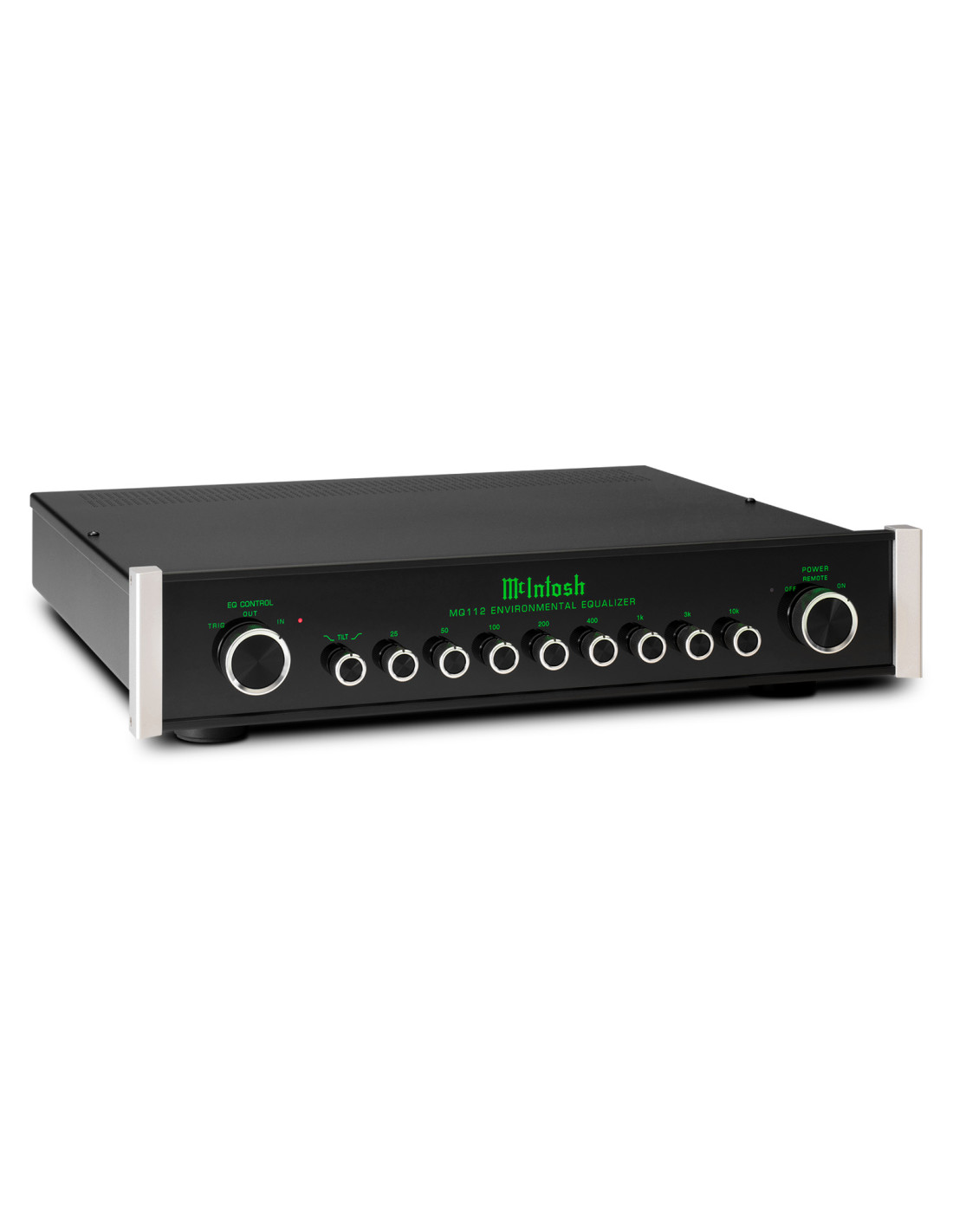

McIntosh MQ112

• 8 joslu analogais ekvalaizers
• Pielāgojiet audio signālu 8 taustiņu joslās 25Hz – 10kHz audio frekvenču diapazonā
• ±12 dB regulēšanas diapazons katrai joslai
• TILT poga turpmākai pielāgošanai ar smalku toņu līdzsvara maiņu ±6 dB

Electronic Specifications

• Rated Output Voltage

  2.5V Unbalanced
  5V Balanced

• Maximum Output Voltage

  10V Unbalanced
  20V Balanced

• Maximum Input Voltage

  10V Unbalanced
  20V Balanced

• Voltage Gain (all controls flat)

  Unbalanced: IN to OUT 0dB
  Balanced: IN to OUT 0dB

• Frequency Response (all controls flat)

  +0, -0.5dB from 20Hz to 20kHz
  +0, -1dB from 10Hz to 100kHz

• Signal To Noise Ratio

  115dB (below rated output)

• Total Harmonic Distortion

  0.005% from 20Hz to 20kHz

• Input Impedance

  10k ohms Unbalanced
  20k ohms Balanced

• Output Impedance

  500 ohms Unbalanced
  1000 ohms Balanced

• Equalizer Controls

  ±12dB at 25Hz, 50Hz, 100Hz, 200Hz, 400Hz, 1kHz, 3kHz, and 10kHz

• Tilt Control

  ±6dB at 20Hz and 20kHz
  650Hz Tilt Axis

Connectivity

• Balanced Input

  1

• Unbalanced Input

  1

• Balanced Output

  2

• Unbalanced Output

  2

Weights & Dimensions

• Unit Dimensions (W x H x D)

  17-1/2” (44.5cm) x 3-15/16” (10cm) x 15-11/16” (39.8cm)

• Unit Weight

  15 lbs (6.8kg)

• Shipping Weight

  29.5 lbs (13.4kg)
