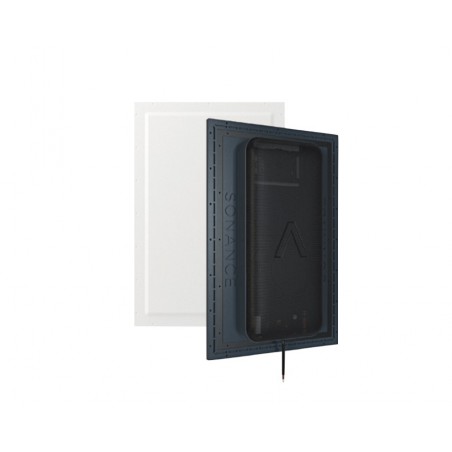

Super Slim WSS430

Write your review

Iebūvējama sienā akustika

Sīkāk...

‹ ›

Redzēt visus attēlus

Ref.: MA-089

Vairāk info
Datu lapas

Frequency Response (-6 dB)

70 Hz – 50 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

8 ohms

Maximum SPL

106.5 dBA

Power Handling (RMS)

75 W Full range (120 W with crossover set to 100 Hz @ 12 dB/Octave)

Recommended Amplifier Requirements

10 – 120 W

Drive Unit Complement

3 x 3" dished C-CAM cone bass-mid drivers
1 x MPD High frequency transducer – rotatable for portrait or landscape application

Crossover Recommendation using AVR/Processor

100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

Overall Dimensions

385 x 140.5 mm (15 x 51/2")

Overall Depth (Including Grille)

54.25 mm (21/8")

Cut-Out Dimensions

346 x 101 mm (131/2 x 4")

Mounting Depth

50 mm (2")

Connection

Gold Plated Sprung push terminals – For bare wire connection up to 3 mm2

Fixing Type

6 position Tri-Grip dog leg fixings

Weight

1.1 kg (2 lb 6 oz)

Construction Material

Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille

Pre-Construction Bracket

WB3 Pre-Construction Bracket (Dark Blue)

Sold As

Single Unit

Serija: Build-in - Super Slim Series
