MC2301

MC2301

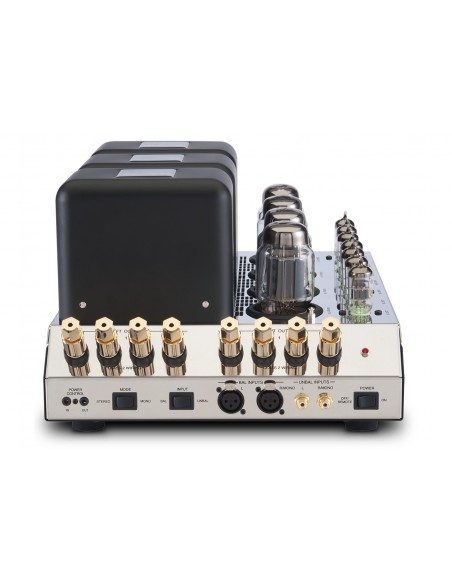

1-Channel Vacuum Tube Amplifier

Sīkāk...

MCI-MC2301

19 150,00 €

19 150,00 € Par gb. / шт. / pc.

ELECTRONIC SPECIFICATIONS



POWER OUTPUT PER CHANNEL

300W @ 2, 4 or 8 Ohms

NUMBER OF CHANNELS

1

TOTAL HARMONIC DISTORTION

0.5%

S/N BELOW RATED OUTPUT

117dB

DYNAMIC HEADROOM

1.2dB

DAMPING FACTOR

>15 Wideband

RATED POWER BAND

20Hz to 20kHz

FREQUENCY RESPONSE +0,-0.25DB

20Hz to 20kHz

FREQUENCY RESPONSE -3DB

10Hz to 100kHz



CONTROL



REMOTE POWER CONTROL

Yes

MULTI CHANNEL DB25 CABLE

N/A



GENERAL SPECIFICATIONS



CIRCUIT CONFIGURATION

Quad Balanced, Unity Coupled

CIRCUIT DESIGN

Vacuum Tube

MONO BRIDGE

No

MONO PARALLEL

No

AUTOFORMER

Transformer

METERS

Yes

METER LIGHT SWITCH

Yes

BALANCED INPUT

Yes

FRONT PANEL

1/2" Glass with handles

ILLUMINATION

LED Fiber Optic

CHASSIS STYLE

Open Stainless Steel

GOLD PLATED BINDING POSTS

Yes, 200 amp, 3-way



WEIGHTS & DIMENSIONS



DIMENSIONS (W X H X D)

17-3/4" (45.09cm) x 12-5/16" (31.27cm) (including feet) x 23" (58.42cm) (including front panel and cables)

WEIGHT

116 lbs (52.6 kg)

SHIPPING WEIGHT

141 lbs (63.9 kg)



  • Izmēri: 45.09cm x 31.27cm (including feet) x 58.42cm (including front panel and cables)
  • Svars: 52.6 kg
  • Pastiprinātāja tips: Izbeigšana
  • Būves shēma: Lampa
  • Kanālu skaitlis: 1
  • Pretestība: 2, 4 or 8 Ohms
  • Jauda katram kanālam (Watt): 300 W
  • Kopējais harmoniskais kropļojums: 0.5%
  • Signāla-trokšņa attiecība: 117dB
