USB cable Hi-Speed, Type A - Mini B

Length of cable (м)
  • 1
  • 2
  • 3

Technical Info

Mechanical Specifications

Standard USB 2.0, Hi-Speed

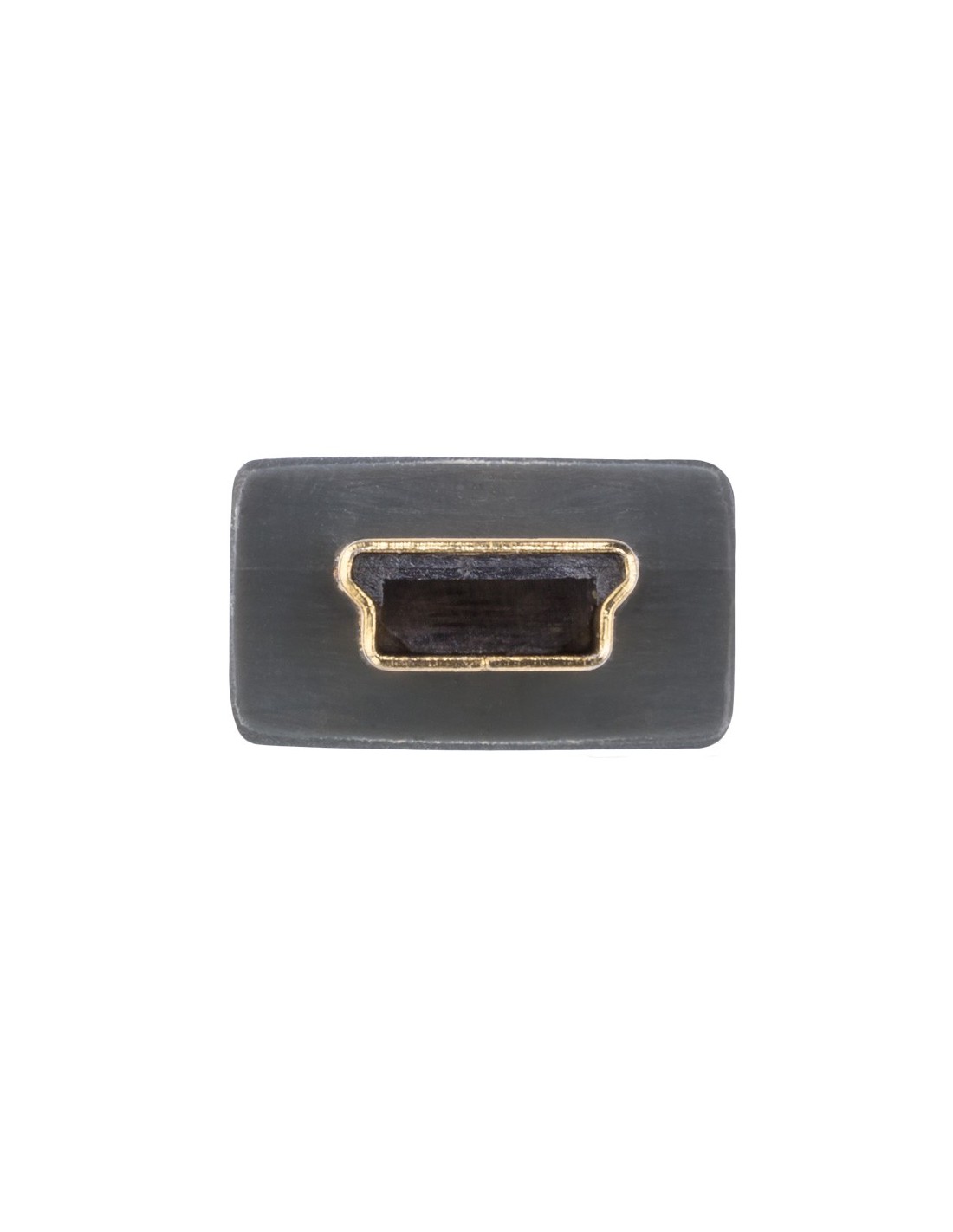

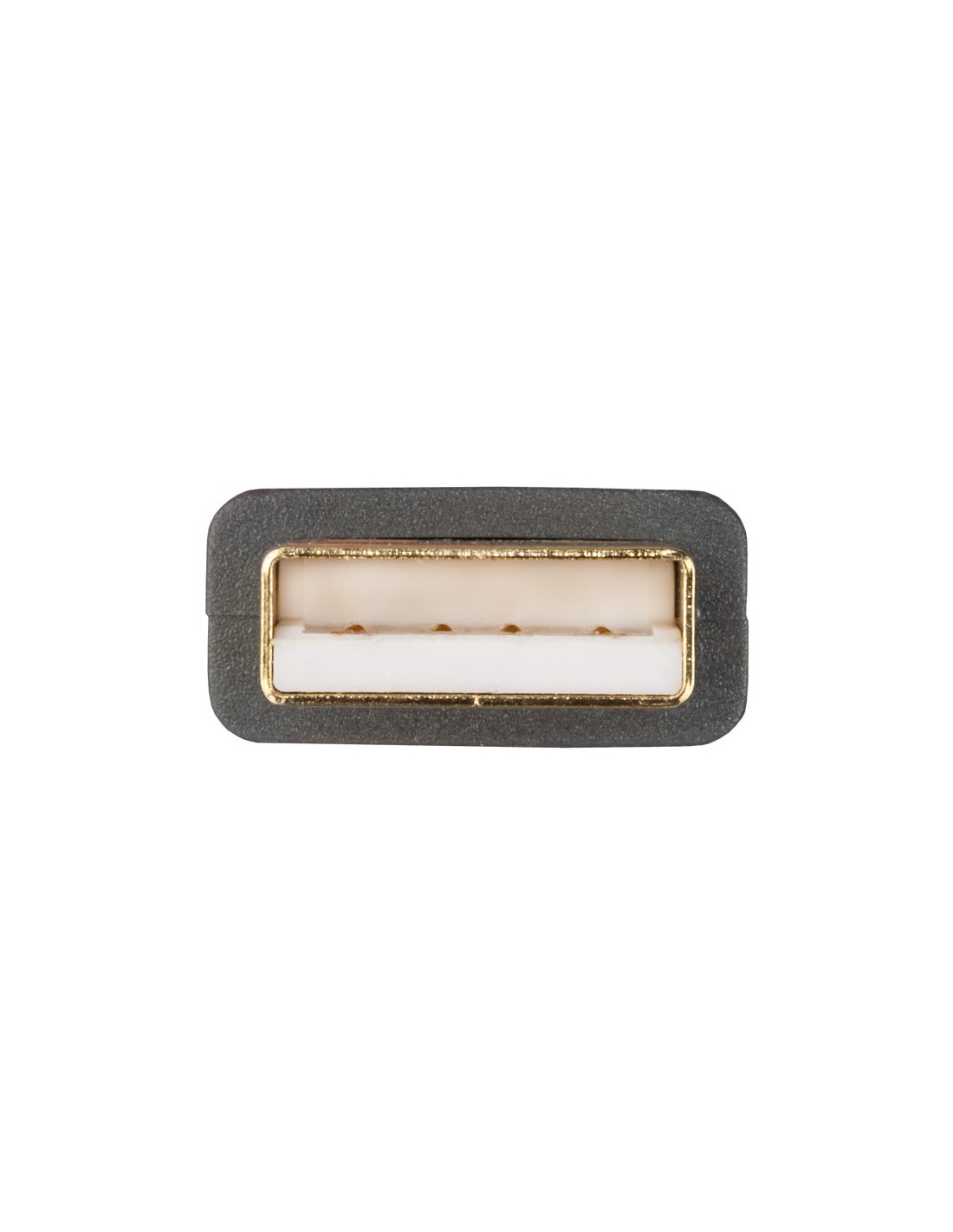

Connectors USB A Male to USB Mini B Male
Signal Direction: <->
Application Examples:  Computer, DAC
Data transfer rate: 480 Mbit/s
Solder Tin: Almit SR-34 Super
Cable clamping: Molded


Number of pairs:  2
Cross Area: 0.24 / 23 mm2/AWG
No. Wires/Conductor:  19
Wire diameter : 0.127 (mm)
Wire Material: Tin Plated OFC
Insulation: PE
Screen: Aluminium/Pet Foil
Jacket: PVC
Flameretardancy: No
Ext. Size 7.5 (mm)
Weight 56 (g/m)

Electrical performance

Resistance: 72 (Ohm/km)
C: 52 (pF/m)
Imp. Z: 90 Ohm
Velo. Factor 0.66c
