Technical Info
Mechanical Specifications
| Standard | USB 2.0, Hi-Speed | ||

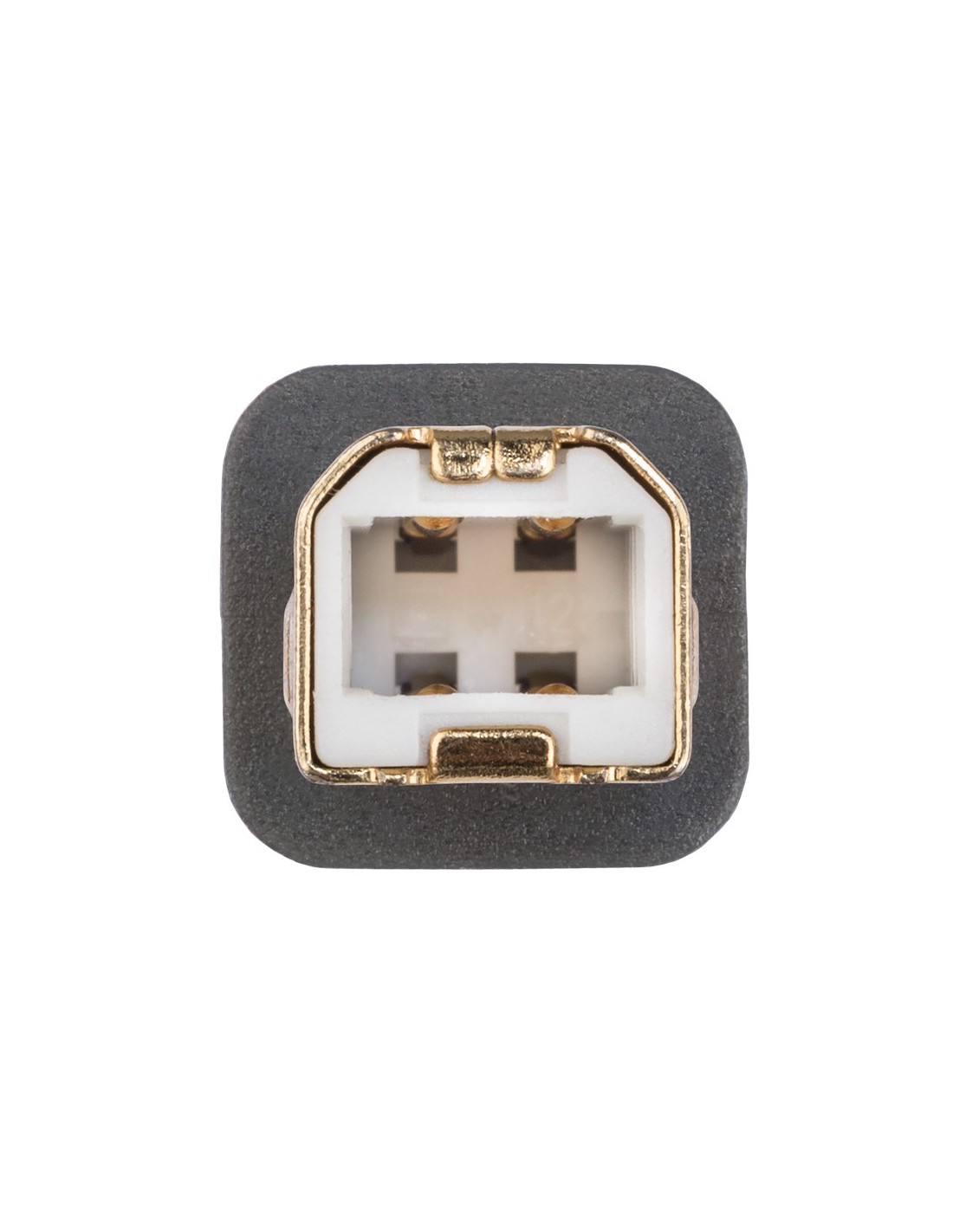

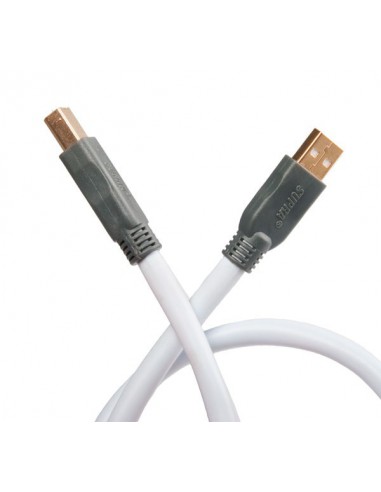

| Connectors | USB A Male to USB B Male | ||
| Signal Direction: | <-> | ||
| Application Examples: | Computer, DAC | ||
| Data transfer rate: | 480 Mbit/s | ||
| Solder Tin: | Almit SR-34 Super | ||
| Cable clamping: | Molded |
| Number of pairs: | 2 | |
| Cross Area: | 0.24 / 23 | mm2/AWG |
| No. Wires/Conductor: | 19 | |
| Wire diameter : | 0.127 | (mm) |
| Wire Material: | Tin Plated OFC | |
| Insulation: | PE | |
| Screen: | Aluminium/Pet Foil | |
| Jacket: | PVC | |
| Flameretardancy: | No | |
| Ext. Size | 7.5 | (mm) |
| Weight | 56 | (g/m) |
Electrical performance
| Resistance: | 72 | (Ohm/km) |
| C: | 52 | (pF/m) |
| Imp. Z: | 90 | Ohm |
| Velo. Factor | 0.66c |
