• Fully balanced design (Pulse Wave Modulation)
• Highly efficient conversion from mains to output power (92%)
• 2 ohms drive capability
• Tube buffer stage with reference quality
• SMD construction for shortest signal paths
• Line level preamp inputs (RCA & XLR)
• Top-quality speaker terminal
• Metal casing protects against vibration and interference
• DC power supply (< 1 watt standby power)
• Available in silver or black
• Optional Upgrade: Linear power supply Power Box RS Amp
for higher power output and further improved sound quality
Technical data |

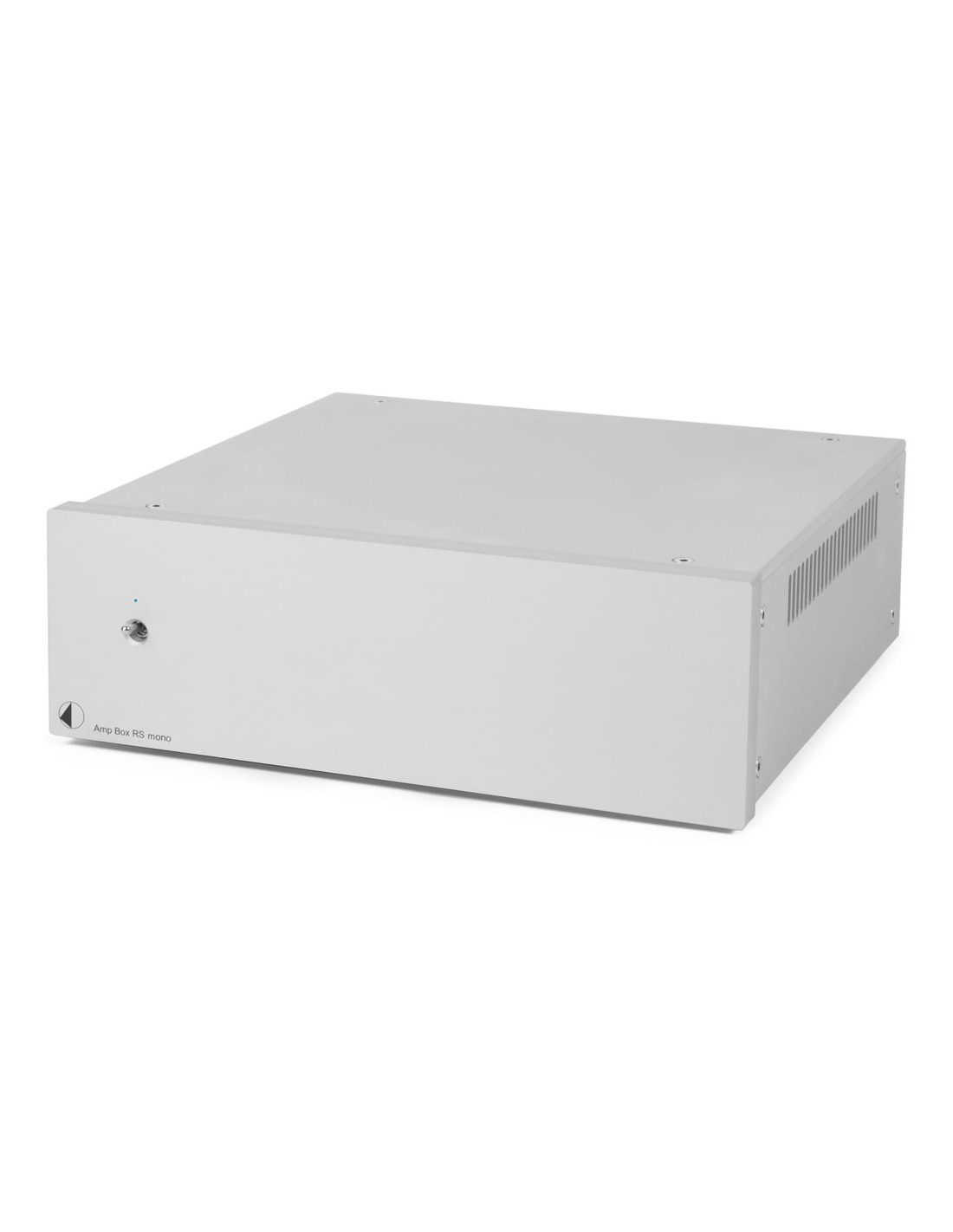

Pro-Ject Amp Box RS Mono |
| Tube assembly | 1 x ECC88 (6922) |
| Power output | 1 x 125W / 195W @ 8 ohms / 4 ohms |
| 2 ohms drive capability | |
| Frequency response | 10Hz - 50kHz (+ 0dB, - 3dB) |
| Signal to noise ratio | >-100dB (IEC -A) |
| THD | < 0,05% @ 100W |
| Input | RCA & XLR-socket |
| Input sensitivity | 1,35V |
| Input Impedance | 22kohms |
| Speaker terminal | 4mm Ø Banana, spade or bare wire |
| External power supply | 48V/2,5A DC;100 - 240V, 50/60Hz |
| Standby consumption | < 1watt |
| Dimensions W x H x D | 206 x 72 x 200 (220mm with sockets) |
| Weight | 2020g without power supply |
