Power Ampliefiers
• Improved PWM-circuitry (Pulse Wave Modulation)
• Improved signal spectrum and lower distortion
• 2 ohms drive capability
• High efficiency from mains to audio power (92%)
• DC power supply (< 1 watt standby power)
• SMD design for shortest signal path
• Low heat emission
• Line level input & loop-out (RCA)
• Gold-plated 5-way speaker binding posts
• Suitable for banana/spade/pin/bare wire
• Trigger input & loop out
• Metal casing protects against vibration and interference
• Available in black or silver
Technische Daten |

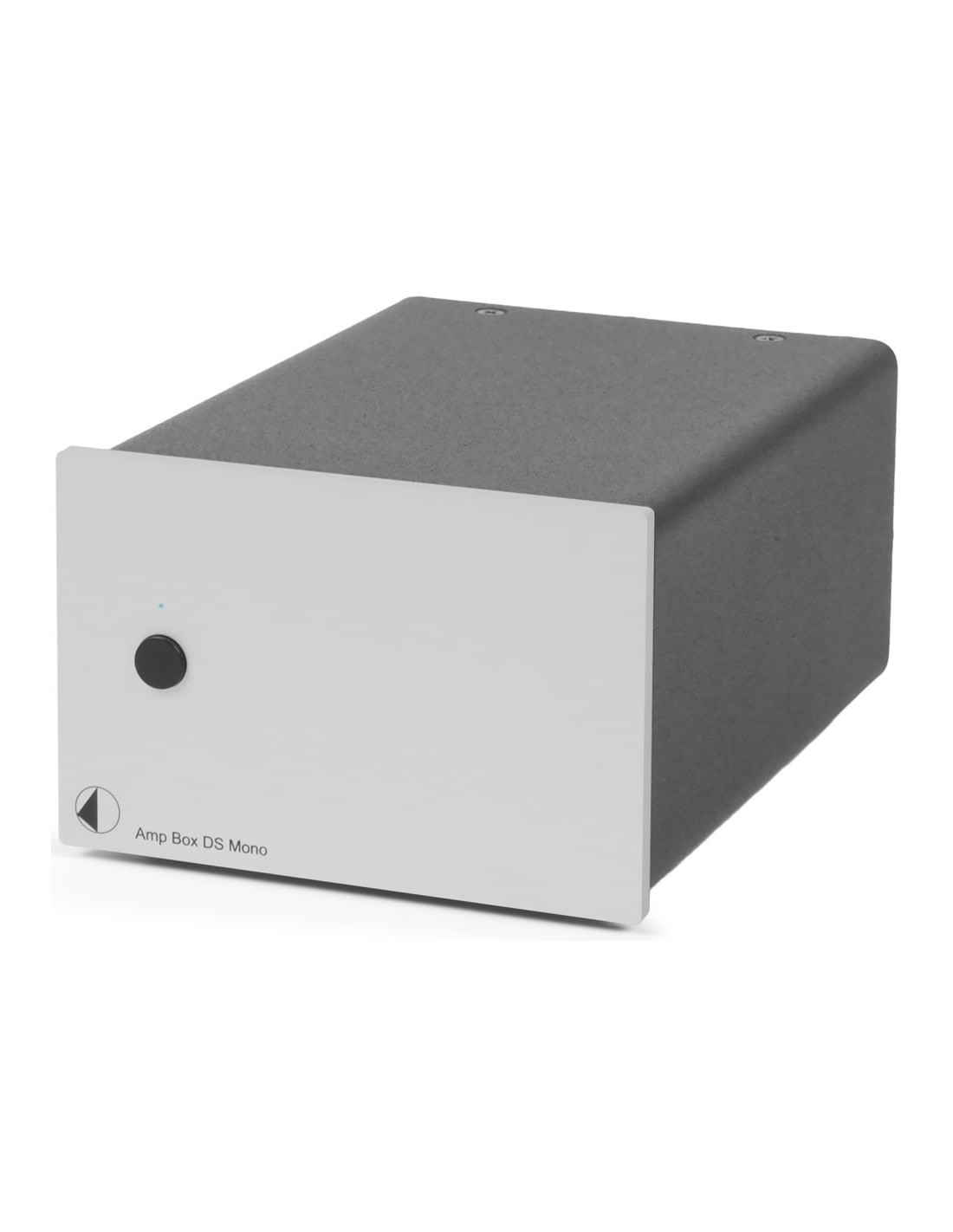

Pro-Ject Amp Box DS Mono |
| Power output | 1 x 125W / 195W @ 8 ohms/4 ohms |
| 2 ohms drive capability | |
| Frequency response | 10Hz - 50kHz (+ 0dB, - 3dB) |
| Signal to noise ratio | >-100dB (IEC -A) |
| THD | < 0,1% @ 90W |
| Gain | 26dB |
| Pre-amp input | 1x RCA with loop-out |
| Input sensitivity | 1,5V |
| Input impedance | 100kohm |
| Speaker port | 4mm Ø Banana, spade or bare wires |
| Trigger 12V DC | In&Out, 2-pole jack Ø 2,5mm |
| External power supply | 48V/2,5A DC;100 - 240V, 50/60Hz |
| Standby power consumption | < 1 watt |
| Dimensons W x H x D | 103 x 72 x 144 (163mm with sockets) |
| Weight | 1290g without power supply |
