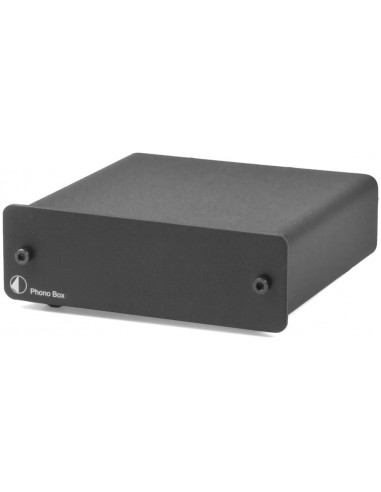

• Preamplifier for MM or MC with switch on rear panel
• Best buy classic
• DC power supply (< 1 watt standby power)
• Precise RIAA equalisation
• Low noise ICs
• Output stage with ultra-low impedance
• Gold-plated RCA sockets
• Small size for installation near record player
• Available in black and silver
Technical specifications |
Pro-Ject Phono Box |
| Input impedance, MM | 47kohms/120pF |
| Input impedance, MC | 100ohms/120pF |
| Gain, MM | 40dB |
| Output voltage typically | 300mV/1kHz at 3mV/1kHz (MM input) |
| Gain, MC | 60dB |
| Output voltage typically | 300mV/1kHz at 0,3mV/1kHz (MC input) |
| Max. output | 9,5V (1kHz) |
| Noise floor, MM | 86dB (94dB - A weighted) |
| Noise floor, MC | 68dB (75dB - A weighted) |
| THD, MM | 0,01% |
| THD, MC | 0,05% |
| RIAA-equalisation curve accuracy | 20Hz - 20kHz / max. 0,5dB |
| Outboard power supply | 18V/200mA DC, |
| suitable for your country's mains supply | |
| Standby power consumption | < 1 watt |
| Dimensions W x H x D | 103 x 36 x 103 (109 mm with sockets) |
| Weight | 540g |
