Technical data |

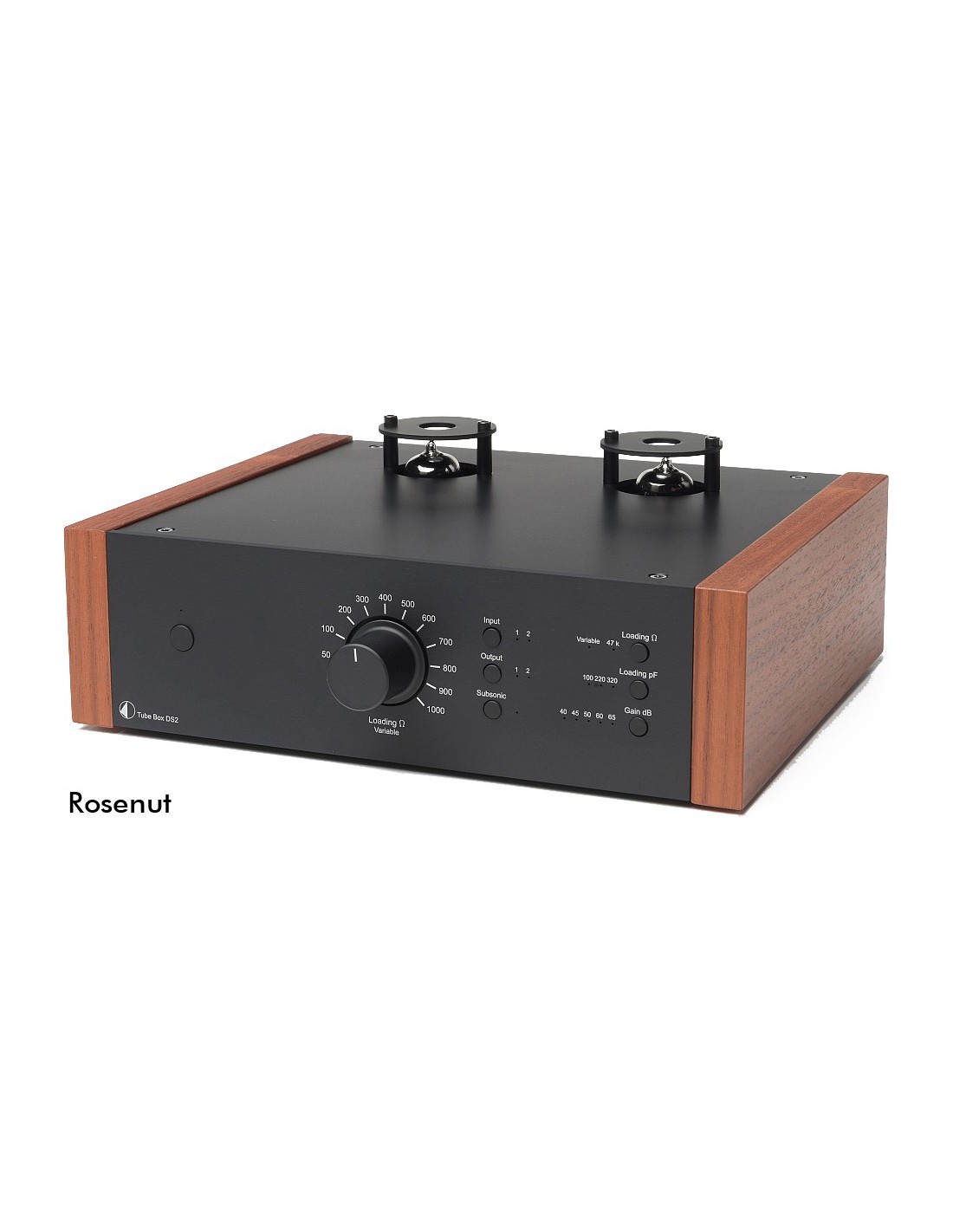

Pro-Ject Tube Box DS2 |
| Tube assembly | 2x ECC83 (12AX7) |
| Input impedance | variable 10-1000 Ohms, fix 47 kOhms |
| Capacitance | 100 / 220 / 320 pF |
| Gain MM / MC | 40 / 45 / 50 / 60 / 65 dB |
| Output voltage typically | 500 mV/1kHz at 5mV/1kHz (at 40dB) |
| Signal-to-noise ratio | 88dBA |
| THD | < 0,04% |
| RIAA curve accuracy | +/- 0,2dB/20Hz - 20kHz |
| Subsonic filter | 20Hz @ 12dB/octave |
| Input / Output | 2x RCA |
| Power supply | 18V/1000mA DC |
| Power consumption | max 490mA DC / < 0,5 watt standby |
| Dimensions WHD | 206 x 91 x 227 mm (aluminium) |
| 240 x 93 x 227 mm (wood) | |
| Weight (without power supply) | 1650g (aluminium) |
| 1930g (wood) |
