HDMI-HDMI MET-S/B HD A/V
HDMI-HDMI MET-S/B HD A/V
HDMI-HDMI MET-S/B HD A/V
HDMI-HDMI MET-S/B HD A/V
HDMI-HDMI MET-S/B HD A/V
HDMI-HDMI MET-S/B HD A/V

HDMI-HDMI MET-S/B HD A/V BLUE

HDMI-HDMI
€106.00

€106.00 kompl.

Tax included

HDMI High Speed with Ethernet Cable

Length of cable (м)
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 10
  • 12
  • 15
  • 20
  • 25
  • 30
Contact us
Hi End Solutions

Ugāles 21-1, Rīga LV-1002, Latvija

+371 67 214 560



Technical Info

Mechanical Specifications

Standard HDMI 2.0, High speed with ethernet
Connection Config.:
Single-Link
Connectors HDMI-HDMI
Signal Direction: <->
HDMI Plugs incl.: 2 x Straight Met-S & 1 x Bent Met-B
Application Examples: DVD/Projector/TV
Max Resolution: 4K UltraHD up to 15m, 1080P@24 15m to 30m
Solder Tin: Almit SR-34 Super
Cable clamping: Molded
Cable SUPRA HD5
Cross section Area: 5xTMDS 0.26 / 23   (mm2/AWG)
Wire Material:  Solid OFC
Insulation: PE Foam
Inner Screen, Coverage: Alu/PET Foil, 100%
Comm. Conductors: 5xAWG 26 PE
Outer Screen, Coverage: Alu/PET Foil & Braid, 100%
Jacket: Heat & Ageing Resistant PVC
Flameretardancy: No, se FRHF Version
Cable diameter: 9.5   (mm)
Weight/m: 0.106   (kg/m)



Electrical performance

Resistance: 82 (Ohm/km)
Capacitance: 42 (pF/m)
Char. Impedance:  100 (Ohm)
Velocity Factor 0.8c

The Trick

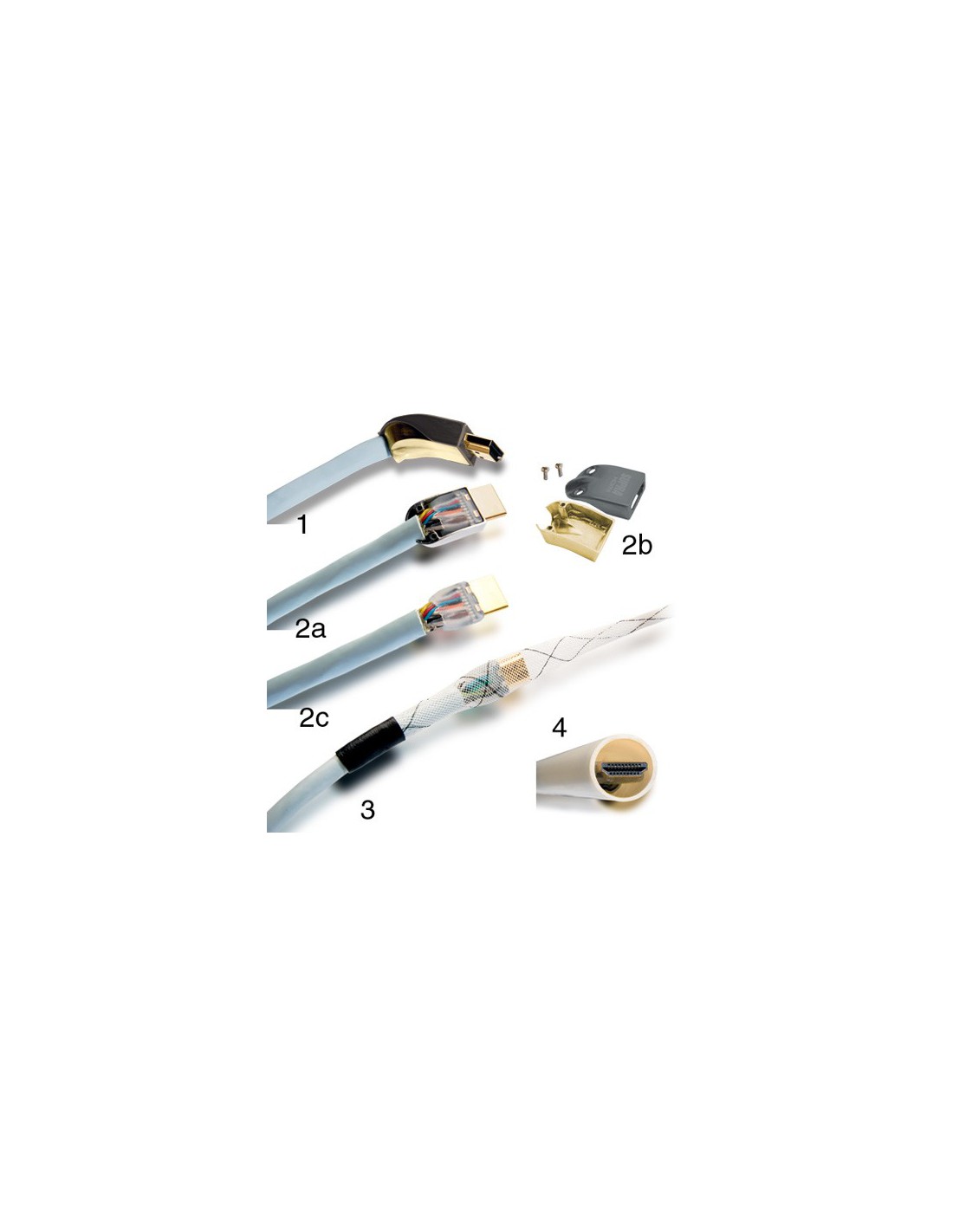

How you get a bent and too big connector through a small conduit pipe (min. diam. 20mm for conduit pipe and min. 25mm for conduit tube).

1. Can you pull this connector through a conduit pipe?
2a. All parts are easily detachable.
2b. These are the parts of the dis-assembled connector.
2c. The soldered part is overmoulded for protection.
3. Nylon braid is used as an aid to pull the cable through the conduit.
Fasten the braid to the pulling tool with a knot.
4. Picture showing how much space there is left in a 20mm pipe.
5. As you can see, despite the sharply bent pipe, the cable got through, effortlessly.
6. Assembled cable and connector ready for use.

Resistance (Ohm/KM) :
82
Area of section (mm2) :
0.26
Amount of tendons :
7
