• Audio-upgrade for TV, Sat, Computer ...
• 24bit/192kHz Cirrus Logic DAC chip
• Supports 24bit audio data
• Up to 192kHz sampling rates
• Automatic signal sensing technology
• Low clock jitter sensitivity
• RCA connectors gold plated (in & out)
• Metal casing protects against vibration and interference
• Black casing only
Technical data |

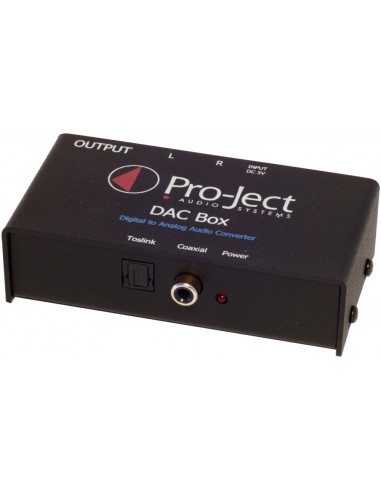

Pro-Ject DAC Box TV |
| D/A-converter | Cirrus Logic CS4344 (Delta-Sigma type) |
| Sampling rates (coax) | 32/44,1/48/88,2/96 kHz, |
| Sampling rates (optical) | 32/44,1/48/88,2/96 kHz |
| Digital inputs | 1 x coax (S/PDIF) |
| 1 x optical (Toslink®) | |
| Dynamic range | 105dB |
| Analogue out | 1 pair RCA/Cinch |
| Output voltage | 0,7 Veff |
| Output impedance | < 100 ohms |
| THD | -90dB |
| Power consumption | < 1 watt standby, 200mA max |
| Power supply | 5V/1000mA DC; 220 - 240V, 50Hz |
| Dimensions W x H x D | 107 x 30 x 64 (75) mm (incl. sockets) |
| Weight | 290g without power supply |
