• Audiophile 24bit/96kHz D/A-conversion
• Precision D/A chip from Texas Instruments
• 8 times oversampling
• 3 Inputs; 1x USB, 1x optical (Toslink), 1 x coax (SPDIF)
• Gold-plated RCA line level output sockets
• DC power supply (< 1 watt standby power)
• To take full advantage of the DAC Box USB features,
please install software package (see manual, website)
• Input selector on front
• New stylish S-design
• Faceplate in silver or black
Technical data |

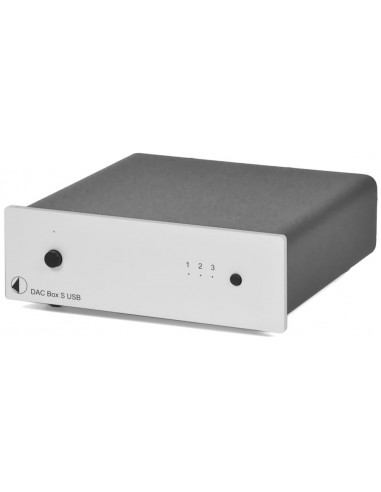

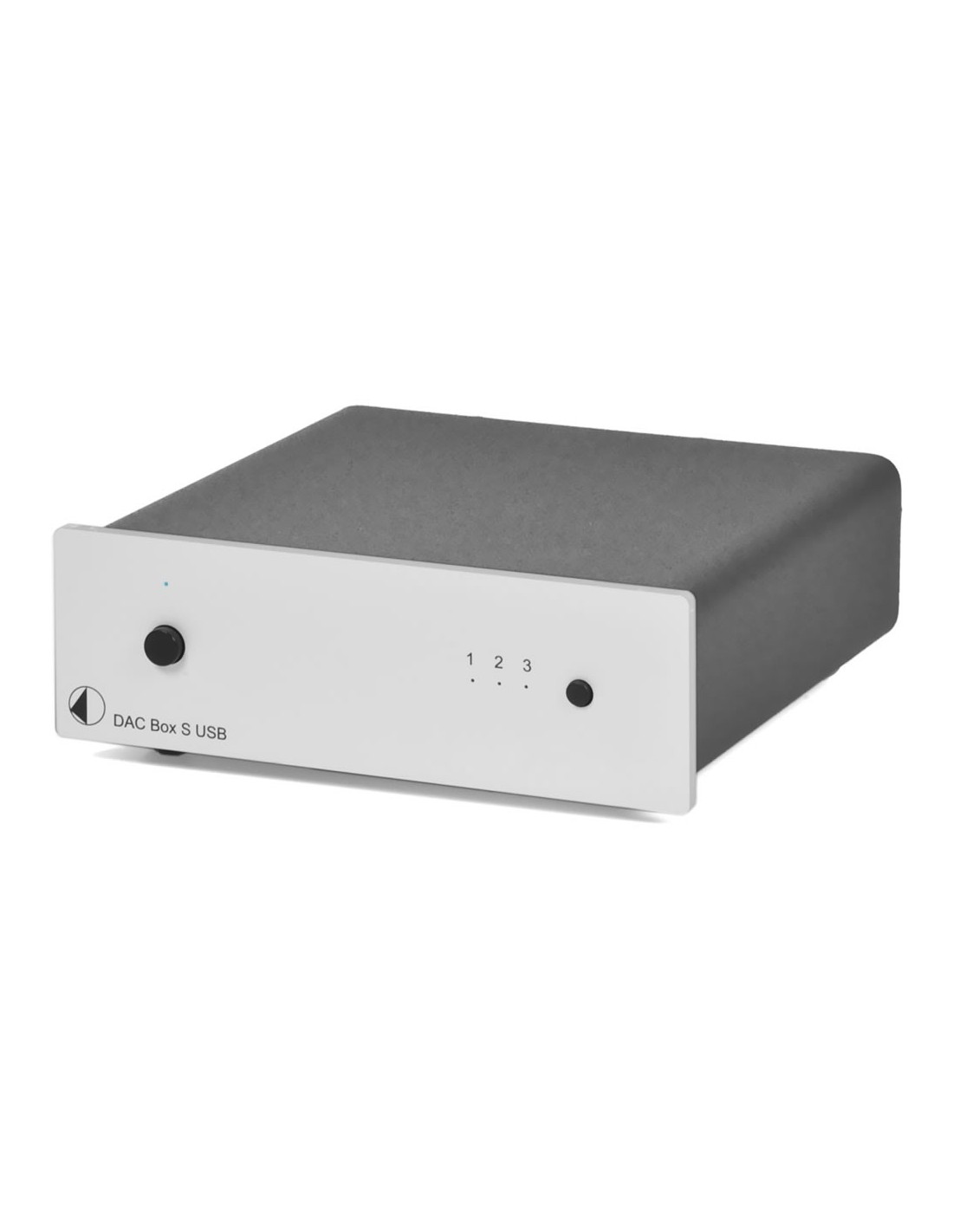

Pro-Ject DAC Box S USB |
| D/A-converter | Texas Instruments TLV320DAC23 |
| 8 x Oversampling design | |
| Sampling rates | 32kHz, 44,1kHz, 48kHz, 96 kHz (opt & coax) |
| THD | <0,005% (20Hz-20kHz) |
| Crosstalk | >95dB |
| Digital inputs | 1 x coax (S/PDIF) |
| 1 x optical (TOSlink®) | |
| 1 x Mini-USB | |
| Analogue out | 1 pair RCA/Cinch |
| Output voltage | 1,0Veff |
| Dimensions W x H x D | 103 x 36 x 103 |
| 103 x 36 x 115 mm (including sockets) | |
| Power supply | 9V DC / 300mA |
| Weight | 680g without power supply |
