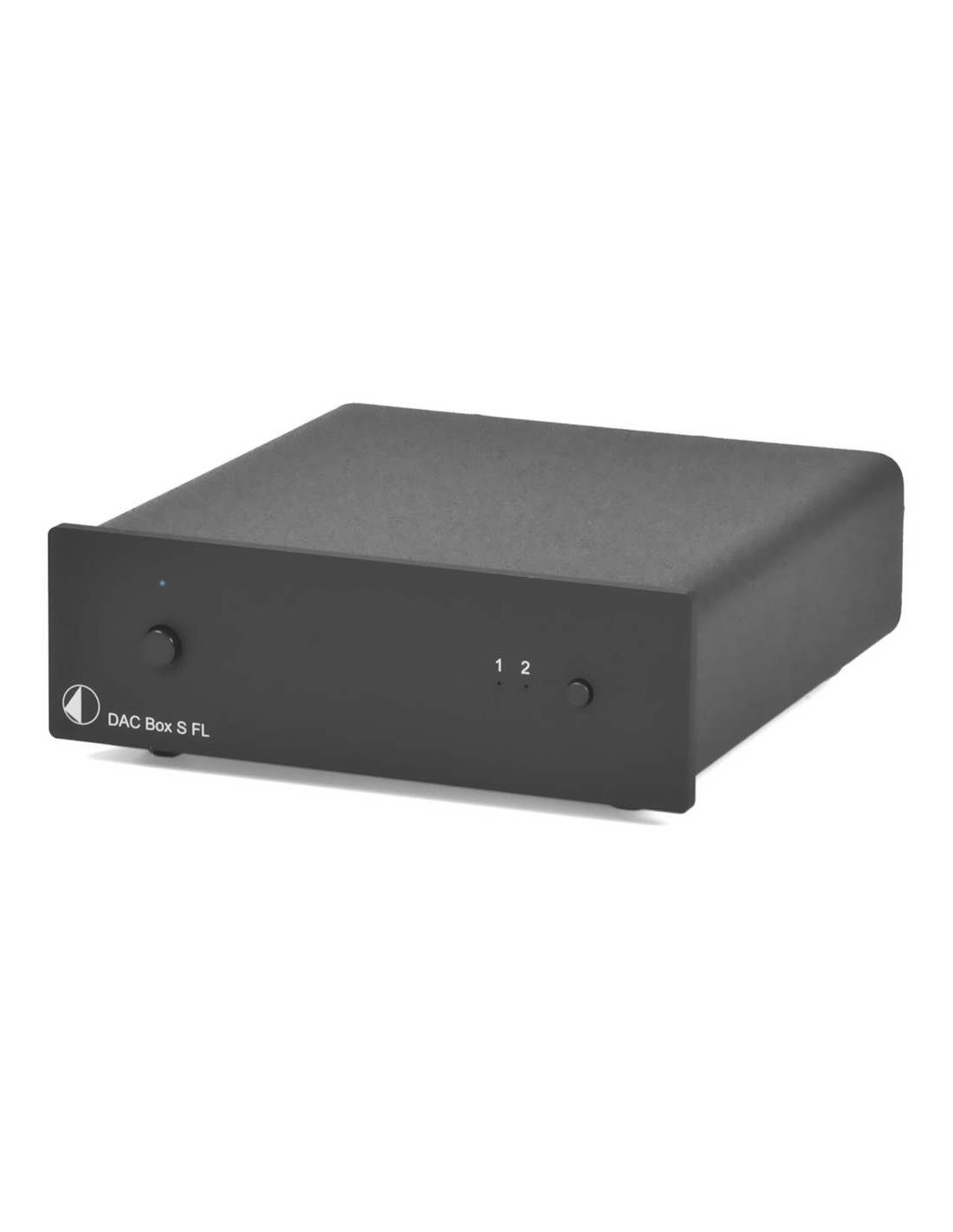

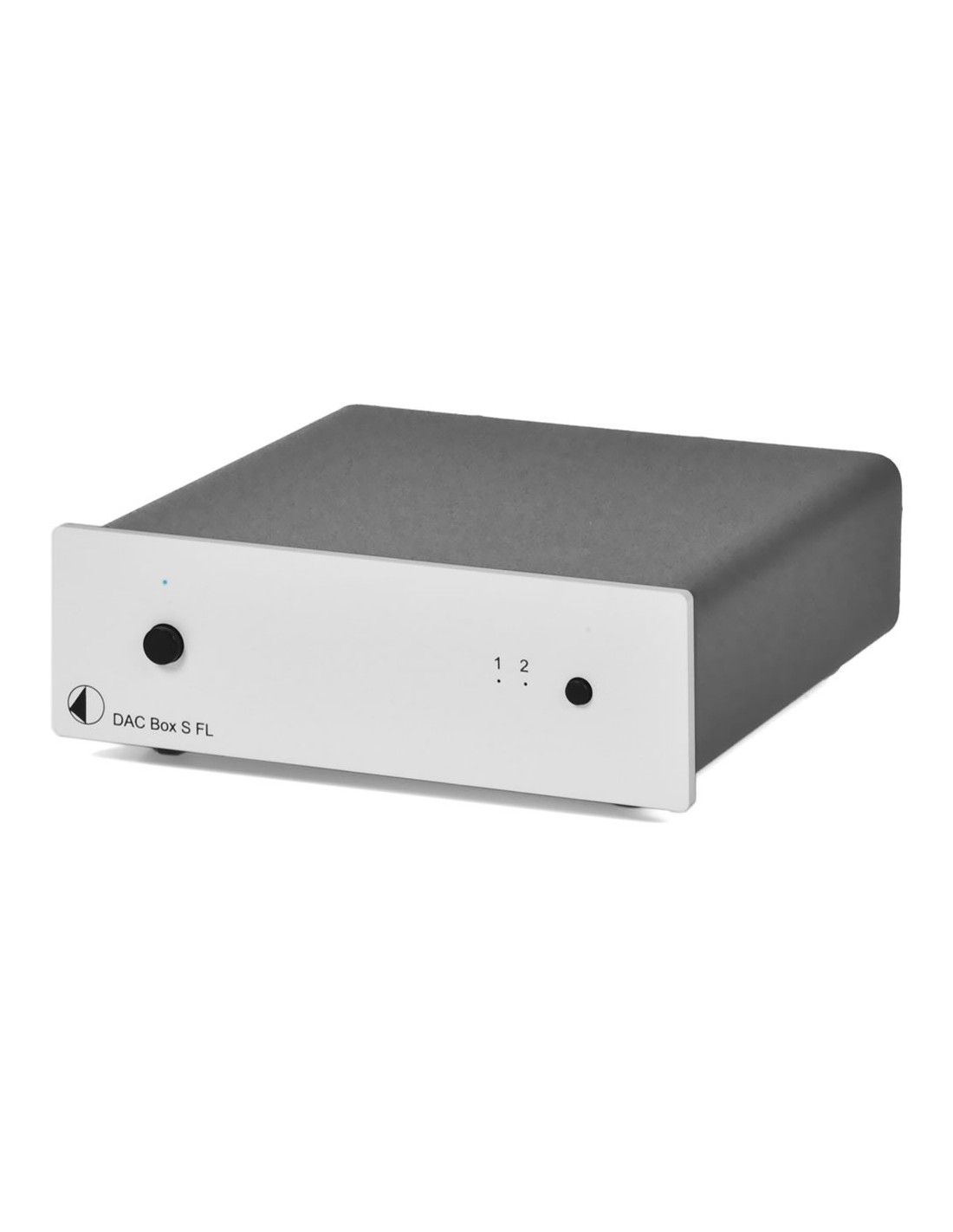

DAC BOX S FL
Filterless Non-Oversampling technique of DAC BOX S FL:
Concept of DAC BOX S FL is based on the original format of the Audio-CD, (which means 16bit and 44,1 kHz) with a maximum transmitted audio frequency of 20kHz.
DAC BOX S FL uses 4 TDA 1543T DA-Chips in parallel Dual Differential Mode, which guarantees high precision and very low distortion in the audible frequency-range below 20kHz.
Ultra low distortion spectrum below 20kHz is very similar to those of tube amplifiers. Distortion levels rise signbificantly above 20kHz, which has no effect in playback of audio CDs, because this is above audible frequency range.
The SMD output stage is direct-coupled to DA-converters for best results.
Pro-Ject DAC Box S FL
|D/A-converter||16Bit/44,1kHz TDA 1543|
|(4 DAC-Chips, parallel operating mode)|
|without digital filter|
|Sampling frequencies||32kHz, 44,1kHz, 48kHz and 96kHz|
|Digital inputs||1 x coax (S/PDIF)|
|1 x optical (TOSlink®)|
|Analogue out||1 pair RCA/Cinch|
|Dimensions W x H x D||103 x 36 x 103|
|103 x 36 x 109 mm (including RCA-plugs)|
|Power supply||9V DC / 80mA|
